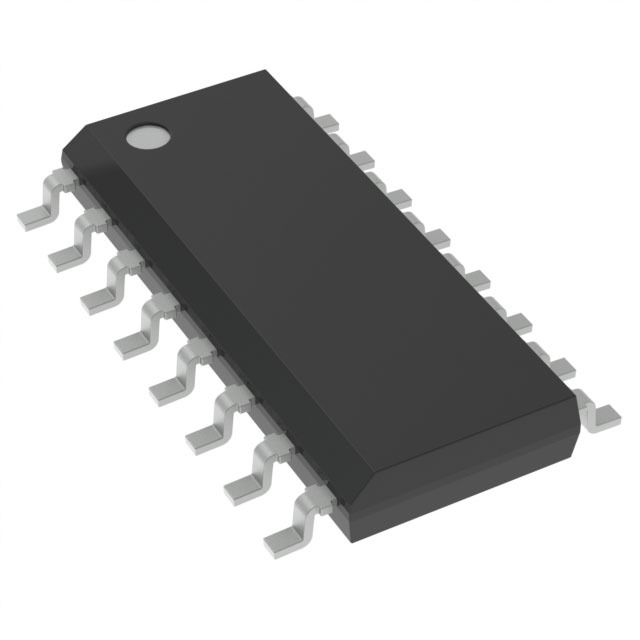

L6598D High voltage resonant controller SOIC-16 IC

L6598D High voltage resonant controller SOIC-16 IC

The L6598 device is manufactured with the BCD™ offline technology, able to ensure voltage ratings up to 600 V, making it perfectly suited for AC/DC adapters and wherever a resonant topology can be beneficial. The device is intended to drive two power MOSFETs, in the classical half bridge topology. A dedicated timing section allows the designer to set soft-start time, soft-start and minimum frequency. An error amplifier, together with the two enable inputs, are made available. In addition, the integrated bootstrap diode and the Zener clamping on low voltage supply, reduces to a minimum the external parts needed in the applications.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• High voltage rail up to 600 V


• DV/Dt immunity ±50 V/ns in full temperature range


• Driver current capability: 250 mA source 450 mA sink


• Switching times 80/40 ns rise/fall with 1 NF load


• CMOS shutdown input


• Under voltage lockout


• Soft-start frequency shifting timing


• Sense op amp for closed loop control or protection features


• High accuracy current controlled oscillator


Specifications of L6598D High voltage resonant controller SOIC-16 IC

• Voltage Rating: Supply Voltage (Vcc): 13V to 18V


• Current Ratings: Output Current: 290mA source, 430mA sink


• Driver Configuration: Half-bridge topology with high-side and low-side drivers.


• Logic Inputs: Compatible with CMOS/TTL levels.


• Switching Frequency: Maximum Frequency: Up to 500kHz


• Package: Type: SO-16N (SMD)


Package Includes

• 1 x L6598D High voltage resonant controller SOIC-16 IC
