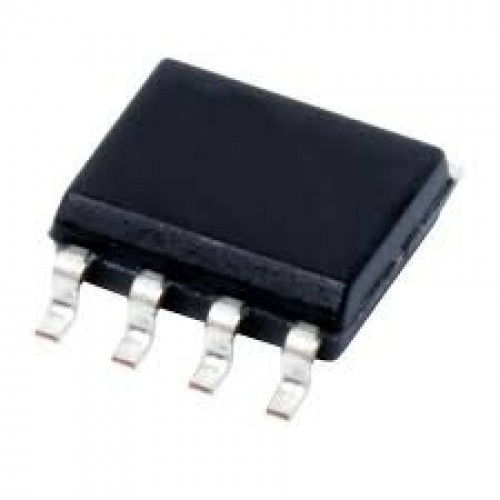

LMP7721MA - Texas Instruments - Operational Amplifier (SOIC8) IC

LMP7721MA Operational Amplifier (SOIC8) IC

The LMP7721MA is a 3fA input bias current Precision Amplifier. The ultra-low input bias current is 3fA, with a specified limit of ±20fA at 25°C and ±900fA at 85°C. This is achieved with the latest patent-pending technology of input bias current cancellation amplifier circuitry. This technology also maintains the ultra-low input bias current over the entire input common-mode voltage range of the amplifier. Other outstanding features such as low voltage noise (6.5nV/√Hz), low DC-offset voltage (±150µV maximum at 25°C) and low-offset voltage temperature coefficient (-1.5 µV/°C), improve system sensitivity and accuracy in high-precision applications with a supply voltage range of 1.8 to 5.5V. The LMP7721 is part of the LMP precision amplifier family. As part of Texas Instruments’ Power Wise™ products, the amplifier provides the remarkably wide-gain bandwidth product (GBW) of 17MHz while consuming only 1.3mA of current.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• 1.3mA Supply current


• 100dB DC CMRR


• 120dB DC Open loop gain


• ±26µV Off-set voltage


• Green product and no Sb/Br


Specifications of LMP7721MA Operational Amplifier (SOIC8) IC

• No. of Channels: 1Channels


• Gain Bandwidth Product: 17MHz


• Slew Rate Typ: 12.76V/µs


• Supply Voltage Range: 1.8V to 5.5V


• IC Case / Package: SOIC


• No. of Pins: 8Pins


• Amplifier Type: Precision


• Rail to Rail: Rail – Rail Output (RRO)


• Input Offset Voltage: 26µV


Package Includes

• 1 x LMP7721MA Operational Amplifier (SOIC8) IC
