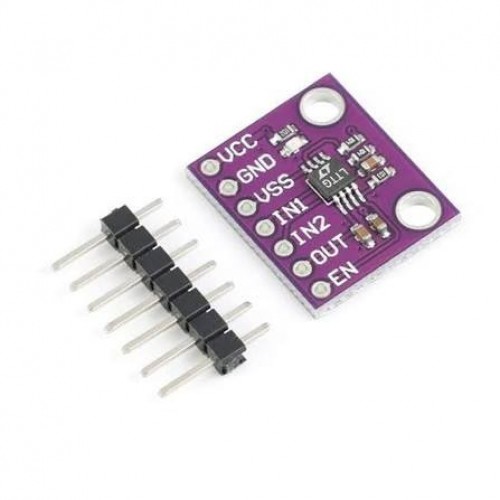

CMJU-6668 LTC1966 accurate micropower Delta Sigma RMS to DC converter

This module is based on Analog Devices LTC1966 single supply RMS to DC Converter IC.

The internal delta-sigma circuitry to use,more accurate, lower power and dramatically more flexible than conventional log-antilog RMS-to-DC converters. The LTC1966 accepts single ended or differential input signals (for EM/RFI rejection) and supports crest factors up to 4. Common mode input range is rail-to-rail. Differential input range is 1 Volt peak, and offers unprecedented linearity. Unlike previously available RMS-to-DC converters, the superior linearity of the LTC1966 allows hassle-free system calibration at any input voltage.

LTC1966 also has a rail-to-rail output with a separate output reference pin providing flexible level shitting.  The LTC1966 operates on a single power supply from 2.7 Volts to 5.5 Volts or dual supplies up to ±5.5 Volts. A low power shut down mode reduces supply current to 0.5uA. The LTC1966 is insensitive to PC board soldering and stresses, as well as operating temperature.

We have Various sizes of Instrumentation Amplifiers. Check out our complete collection of Instrumentation Amplifiers.

Features of LTC1966 accurate micropower delta sigma RMS to DC converter

• 2.7 Volt to 5.5 Volt Single Supply

• Up to ±5.5 Volt Dual Supply

Related Links

• LTC1966 Datasheet

• Analog Devices LTC1966 single supply RMS to DC Converter IC.

Package Includes

• 1 x LTC1966 RMS to DC converter Module
