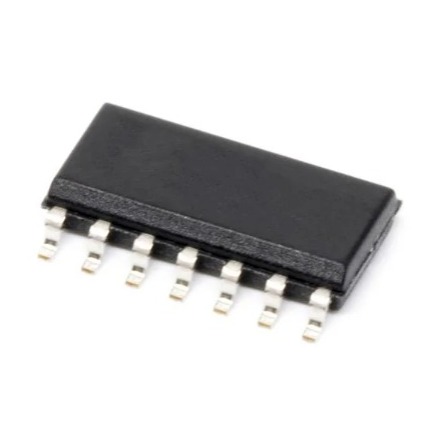

MAX1488E (±15kV ESD-Protected, Quad, Low-Power RS-232 Line Driver) SMD IC

MAX1488E (±15kV ESD-Protected, Quad, Low-Power RS-232 Line Driver) SMD IC

The MAX1488E is a high-performance, quad, low-power RS-232 line driver designed by Maxim Integrated. It provides robust communication in harsh environments by offering enhanced protection features, including ±15kV ESD (Electrostatic Discharge) protection. It is optimized for low-power operation, making it ideal for portable and battery-powered applications. The device is compliant with the EIA/TIA-232E and V.28/V.24 communication standards, ensuring reliable data transmission over serial interfaces. Its small size and efficient design make it suitable for space-constrained applications.

DNA solutions, Nashik has various types of Driver IC's. Check out our complete collection of Driver IC's.

• ±15kV ESD protection on all RS-232 output pins

• Meets IEC 61000-4-2 Level 4 ESD standards for robust operation

• Drives up to four RS-232 lines simultaneously

• Designed for efficient operation in battery-powered devices

• Available in space-saving packages such as SOIC and TSSOP

Specifications of MAX1488E (±15kV ESD-Protected, Quad, Low-Power RS-232 Line Driver) SMD IC

• Supply Voltage (Vcc): +5V

• Data Rate: 120kbps (minimum)

• Output Voltage Swing: ±5V (RS-232 compliant)

• ESD Protection: ±15kV (Human Body Model)

• Operating Temperature: -40°C to +85°C

• Package Types: SOIC, TSSOP

• Supply Current: Low power consumption (typically under 10mA)

• Number of Drivers: 4

Applications of MAX1488E (±15kV ESD-Protected, Quad, Low-Power RS-232 Line Driver) SMD IC

• Data Communication Interfaces

• Portable and Battery-Powered Devices

• Industrial Automation

• Instrumentation

• Embedded Systems

Package Includes

      1 x MAX1488E (±15kV ESD-Protected, Quad, Low-Power RS-232 Line Driver) SMD IC
