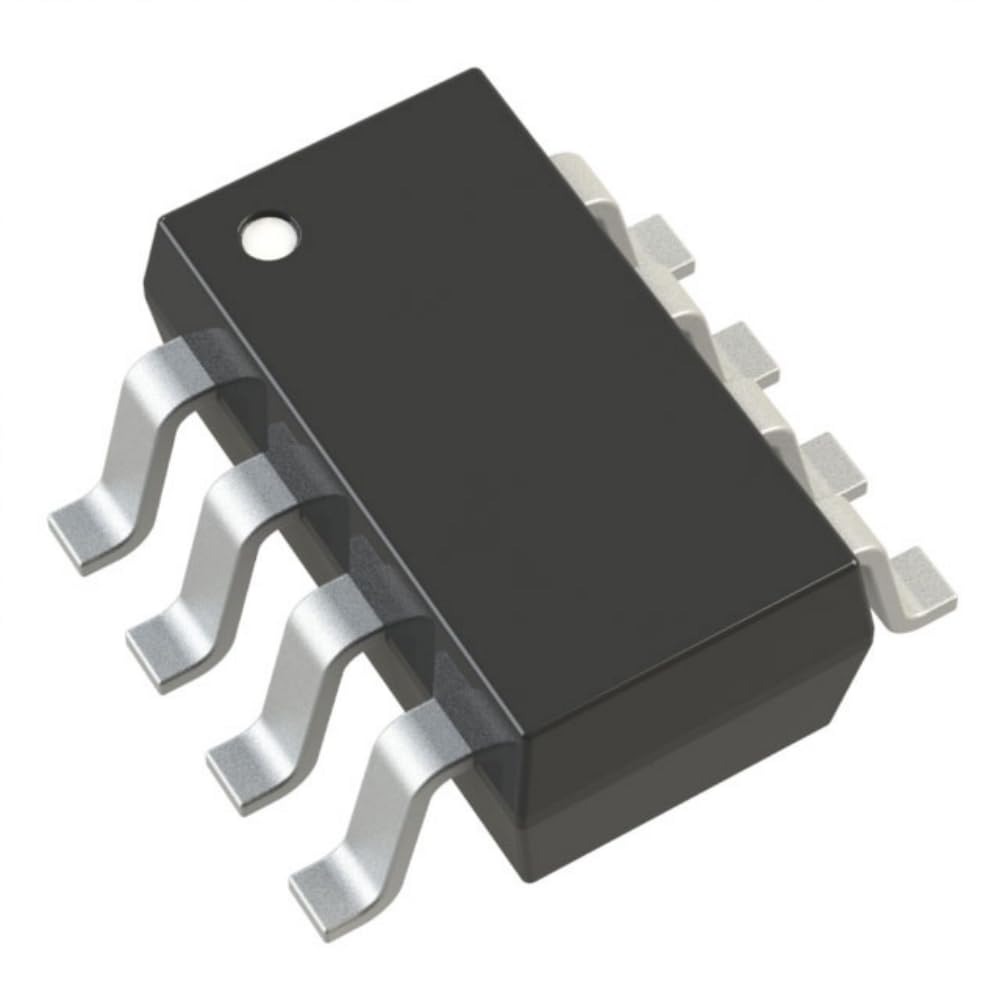

MAX4468EKA+T Low-Cost Micropower Preamplifier SOT23-8 IC

MAX4468EKA+T Low-Cost Micropower Preamplifier SOT23-8 IC

The MAX4468EKA+T are micropower op amps optimized for use as microphone preamplifiers. They provide the ideal combination of an optimized gain bandwidth product vs. supply current, and low voltage operation in ultra-small packages. The MAX4465/ MAX4468EKA+T are unity-gain stable and deliver a 200kHz gain bandwidth from only 24µA of supply current. The MAX4468EKA+T are decompensated for a minimum stable gain of +5V/V and provide a 600kHz gain bandwidth product. In addition, these amplifiers feature Rail-to-Rail® outputs, high AVOL, plus excellent power-supply rejection and common-mode rejection ratios for operation in noisy environments.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• +2.4V to +5.5V Supply Voltage Operation

• Versions with 5nA Complete Shutdown Available(MAX4468EKA+T)

• Excellent Power-Supply Rejection Ratio: 112dB

• Excellent Common-Mode Rejection Ratio: 126dB

• High AVOL: 125dB (RL = 100kΩ)

• Rail-to-Rail Outputs

• Low 24µA Quiescent Supply Current

Applications of MAX4468EKA+T Low-Cost Micropower Preamplifier SOT23-8 IC

• Microphone Preamplifiers

• Hearing Aids

• Cellular Phones

• Voice-Recognition Systems

• Digital Dictation Devices

• Headsets

• Portable Computing

Package Includes

      1 x MAX4468EKA+T Low-Cost Micropower Preamplifier SOT23-8 IC
