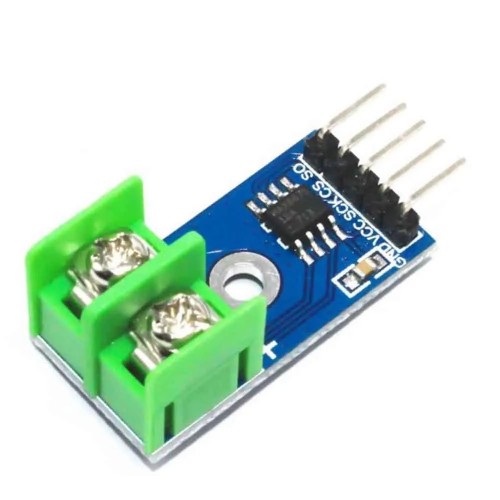

MAX6675 K Type Thermocouple Sensor Module With Thermocouple

MAX6675 K Type Thermocouple Sensor Module With Thermocouple

This MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor. It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C.

DNA solutions, Nashik has various types of Sensor Module's. Check out our complete collection of  Sensor Module's.

• Internal integrated cold junction compensation circuit;


• Temperature signal can be converted into 12-bit digital


• Embedded thermocouple break detection circuitry.


• K-type temperature probe


• Simple SPI serial output temperature.


• High impedance differential inputs.


• Thermocouple break detection.


Specifications of MAX6675 K Type Thermocouple Sensor Module With Thermocouple

• Operating Voltage: 3.0V to 5.5V DC


• Interface: SPI (Serial Peripheral Interface)


• Temperature Range: 0°C to +1024°C (32°F to +1875°F) with the appropriate thermocouple


• Thermocouple Compatibility: Type K thermocouples


• PCB Size: Typically around 25mm x 30mm (can vary by manufacturer)


• LED Indicator: Some modules feature an LED that indicates when the module is powered on.


Package Includes

• 1 x MAX6675 K Type Thermocouple Sensor Module With Thermocouple
