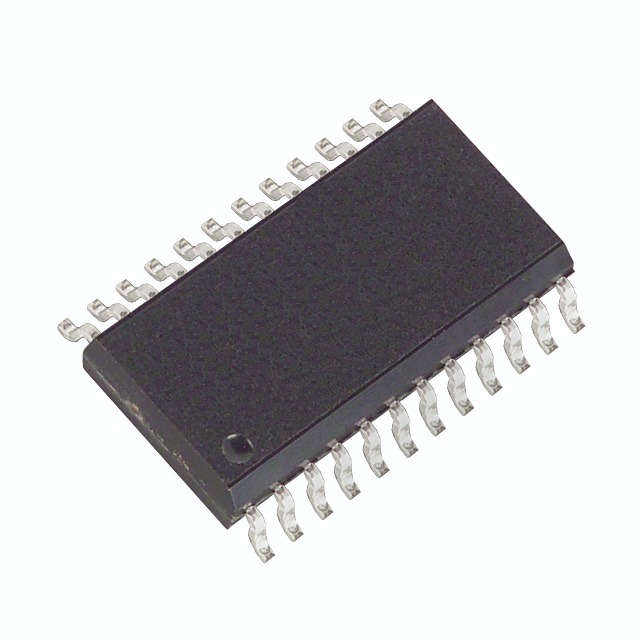

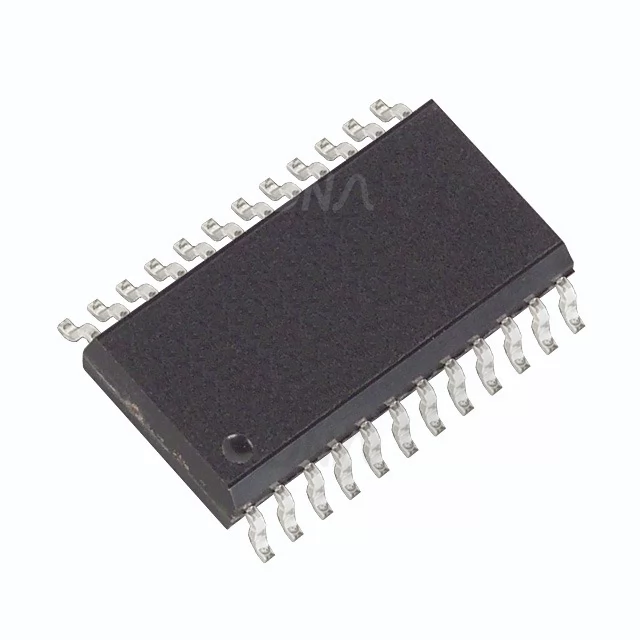

MAX7219EWG Serially Interfaced,8-Digit LED Display Drivers IC(SOIC 24 pin)

MAX7219EWG Serially Interfaced,8-Digit LED Display Drivers IC(SOIC 24 pin)

The MAX7219ewg are compact, serial input/ output common-cathode display drivers that interface microprocessors (μPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs. The MAX7221 is compatible with SPI™, QSPI™, and MICROWIRE™, and has slew-rate-limited segment drivers to reduce EMI. A convenient 4-wire serial interface connects to all common μPs. Individual digits may be addressed and updated without rewriting the entire display.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• 10MHz Serial Interface


• Individual LED Segment Control


• Decode/No-Decode Digit Selection


• 150μA Low-Power Shutdown (Data Retained)


• Digital and Analog Brightness Control


• Display Blanked on Power-Up


• Drive Common-Cathode LED Display


• Slew-Rate Limited Segment Drivers for Lower EMI (MAX7221)


Applications of MAX7219EWG Serially Interfaced,8-Digit LED Display Drivers IC(SOIC 24 pin)

• Bar-Graph Displays


• Industrial Controllers


• Panel Meters


• LED Matrix Displays


Package Includes

• 1 x MAX7219EWG Serially Interfaced,8-Digit LED Display Drivers IC(SOIC 24 pin)
