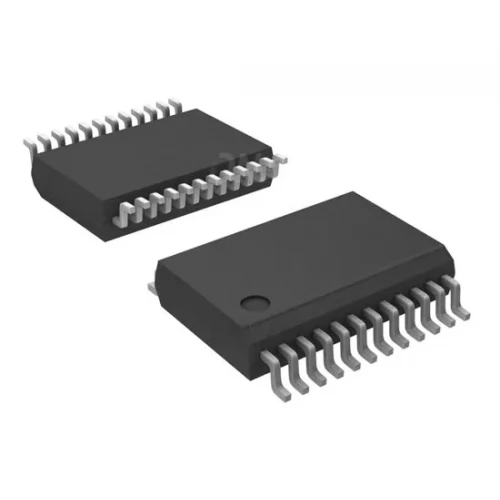

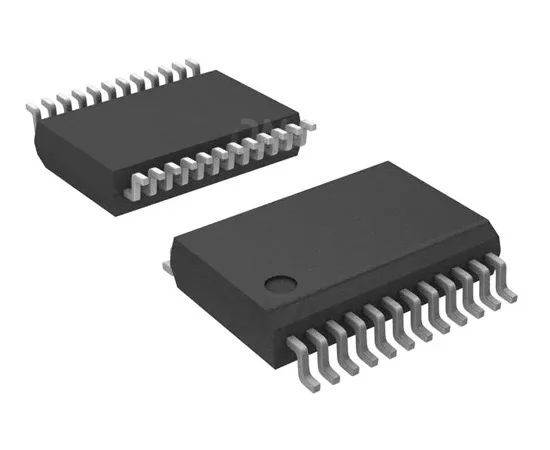

MBI5034GP SSOP24 16 channel LED Display Driver IC

MBI5034GP LED Display Driver

The MBI5034GP IC is designed for LED displays which require to operate at low current and to match the luminous intensity of each channel. It provides supply voltage and accepts CMOS logic input at 3.3V and 5.0V to meet the trend of low power consumption. MBI5024 contains a serial buffer and data latches which convert serial input data into parallel output format. At MBI5034GP IC output stage, sixteen regulated current ports are designed to provide uniform and constant current sinks for driving LEDs within a large range of VF variations. MBI5024 provides users with great flexibility and device performance while using MBI5034GP IC in their system design for LED display applications, e.g. LED panels.

DNA solutions, Nashik has various types of LED Display's. Check out our complete collection of LED Display.

• 16 constant-current output channels


• Constant output current invariant to load voltage change


• Output current adjusted through an external resistor


• Fast response of output current, OE(min.): 70ns with good uniformity  between output channels


• Staggered delay of output


• 25MHz clock frequency


Specifications of MBI5034GP IC LED Display Driver

• Supply Voltage: Operating Voltage Range: 3.0V to 5.5V


• Output Channels: 16-channel constant current LED sink driver.


• Output Current: Adjustable output current per channel: 3 mA to 45 mA (typical).


• Data Transfer: Data transfer rate up to 25 MHz.


• Control Interface: Serial data input/output (SDI/SDO) for connecting in series.


• PWM Control: Built-in Pulse Width Modulation (PWM) control with 16-bit grayscale control.


Package Includes

• 1 x MBI5034GP IC LED Display Driver
