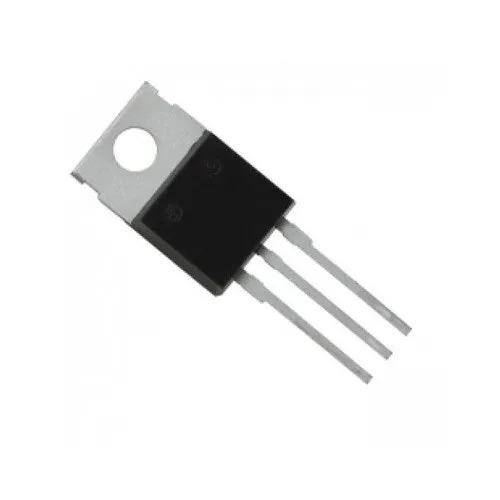

MBR20100 Switch Mode Power Rectifier

MBR20100 Switch Mode Power Rectifier

The MBR20100 is a 20A, 100V Schottky barrier rectifier. It is designed to provide high efficiency and low power loss in various high-speed switching applications. This rectifier is commonly used in power supplies, converters, and other applications requiring efficient rectification.

DNA solutions, Nashik has various types of Rectifier's. Check out our complete collection of  Rectifier's.

• High Current Capability: 20A continuous forward current


• Low Forward Voltage Drop: Reduces power loss and improves efficiency


• High Surge Current Capability: 150A peak forward surge current


• High Reliability: Rugged and reliable construction


• Low Power Loss: Ideal for high-efficiency applications


• Fast Switching: Suitable for high-frequency applications


• High Temperature Operation: Can operate at junction temperatures up to 150°C


Specifications of MBR20100 Switch Mode Power Rectifier

• Switch Mode Power Supplies (SMPS): Used for rectification in high-efficiency power supplies.


• High-Frequency Inverters: Suitable for fast switching applications.


• Free-Wheeling Diodes: Used in motor control and other applications requiring fast recovery times.


• DC-DC Converters: Ensures efficient rectification in converters.


• Polarity Protection: Protects circuits from reverse voltage.


Package Includes

1 x MBR20100 Switch Mode Power Rectifier
