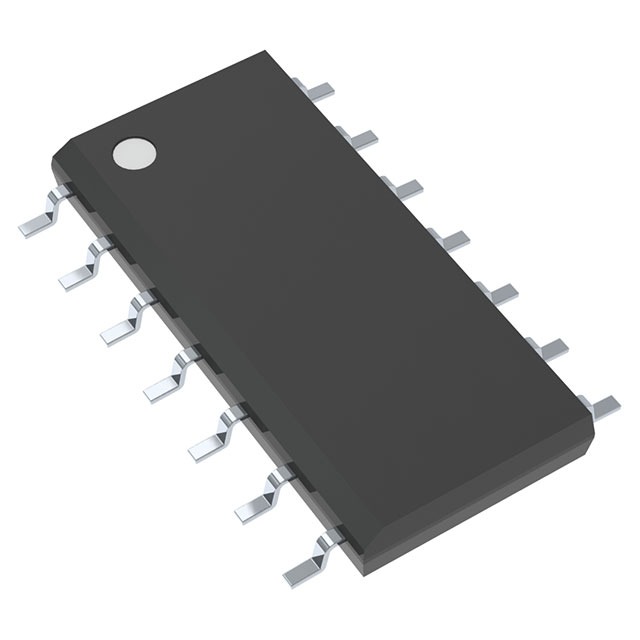

MC14541 Programmable Timer (SOIC14) IC

MC14541 Programmable Timer (SOIC14) IC

The MC14541B programmable timer consists of a 16−stage binary counter, an integrated oscillator for use with an external capacitor and two resistors, an automatic power−on reset circuit, and output control logic. Timing is initialized by turning on power, whereupon the power−on reset is enabled and initializes the counter, within the specified VDD range. With the power already on, an external reset pulse can be applied. Upon release of the initial reset command, the oscillator will oscillate with a frequency determined by the external RC network.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Increments on Positive Edge Clock Transitions


• Built−in Low Power RC Oscillator (±2% accuracy over temperature range and ±20% supply and ±3% over processing at < 10 kHz)


• Oscillator May Be Bypassed if External Clock Is Available (Apply external clock to Pin 3)


• External Master Reset Totally Independent of Automatic Reset Operation


• Operates as 2n Frequency Divider or Single Transition Timer


• Q/Q Select Provides Output Logic Level Flexibility


Specifications of MC14541 Programmable Timer (SOIC14) IC

• Operating Voltage Range: 3.0V to 18V


• Input Clock Frequency: DC to 100 kHz


• Power Consumption: Low power consumption


• Time Delay Range: From microseconds to hours, determined by external components


• Output Current: 10 mA typical


Package Includes

• 1 x MC14541 Programmable Timer (SOIC14) IC
