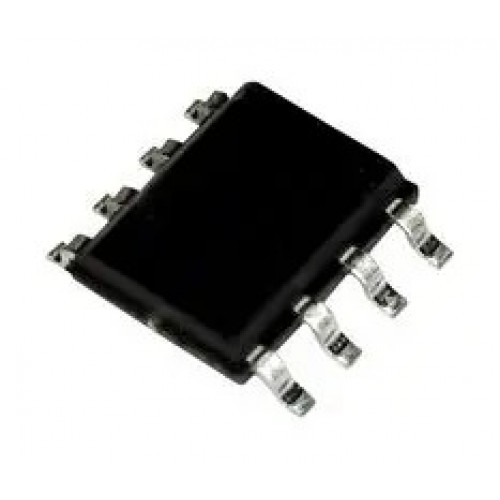

MCP3201 12-Bit 8PIN A/D Converter with SPI Serial Interface IC

MCP3201 12-Bit 8PIN A/D Converter with SPI Serial Interface IC

The Microchip Technology Inc. MCP3201 device is a successive approximation 12-bit Analog-to-Digital (A/D) Converter with on-board sample and hold circuitry. The device provides a single pseudo-differential input. Differential Nonlinearity (DNL) is specified at ±1 LSB, and Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3201-B) and ±2 LSB (MCP3201-C) versions. Communication with the device is done using a simple serial interface compatible with the SPI protocol. The device is capable of sample rates of up to 100 ksps at a clock rate of 1.6 MHz. The MCP3201 device operates over a broad voltage range (2.7V5.5V).

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• 12-Bit Resolution


• Single Supply Operation: 2.7V - 5.5V


• 100 ksps Maximum Sampling Rate at VDD = 5V


• 50 ksps Maximum Sampling Rate at VDD = 2.7V


• Low-Power CMOS Technology


• 500 nA Typical Standby Current, 2 µA Maximum


• 400 µA Maximum Active Current at 5V


• Industrial Temp Range: -40°C to +85°C


• 8-pin MSOP, PDIP, SOIC and TSSOP Packages


Applications of MCP3201 12-Bit 8PIN A/D Converter with SPI Serial Interface IC

• Battery-powered Systems: Due to its low power consumption.


• Portable Medical Devices: For accurate data collection in handheld devices.


• Data Acquisition Systems: High-resolution conversion in measurement instruments.


• Industrial Sensors: Monitoring environmental conditions or equipment performance.


• Embedded Systems: Works well with microcontrollers that require high-speed, low-power ADC solutions.


Package Includes

• 1 x MCP3201 12-Bit 8PIN A/D Converter with SPI Serial Interface IC
