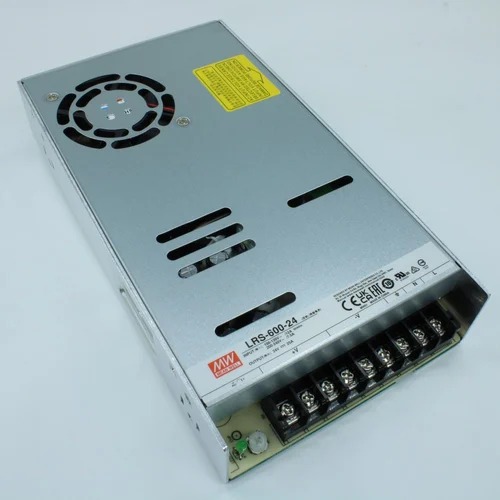

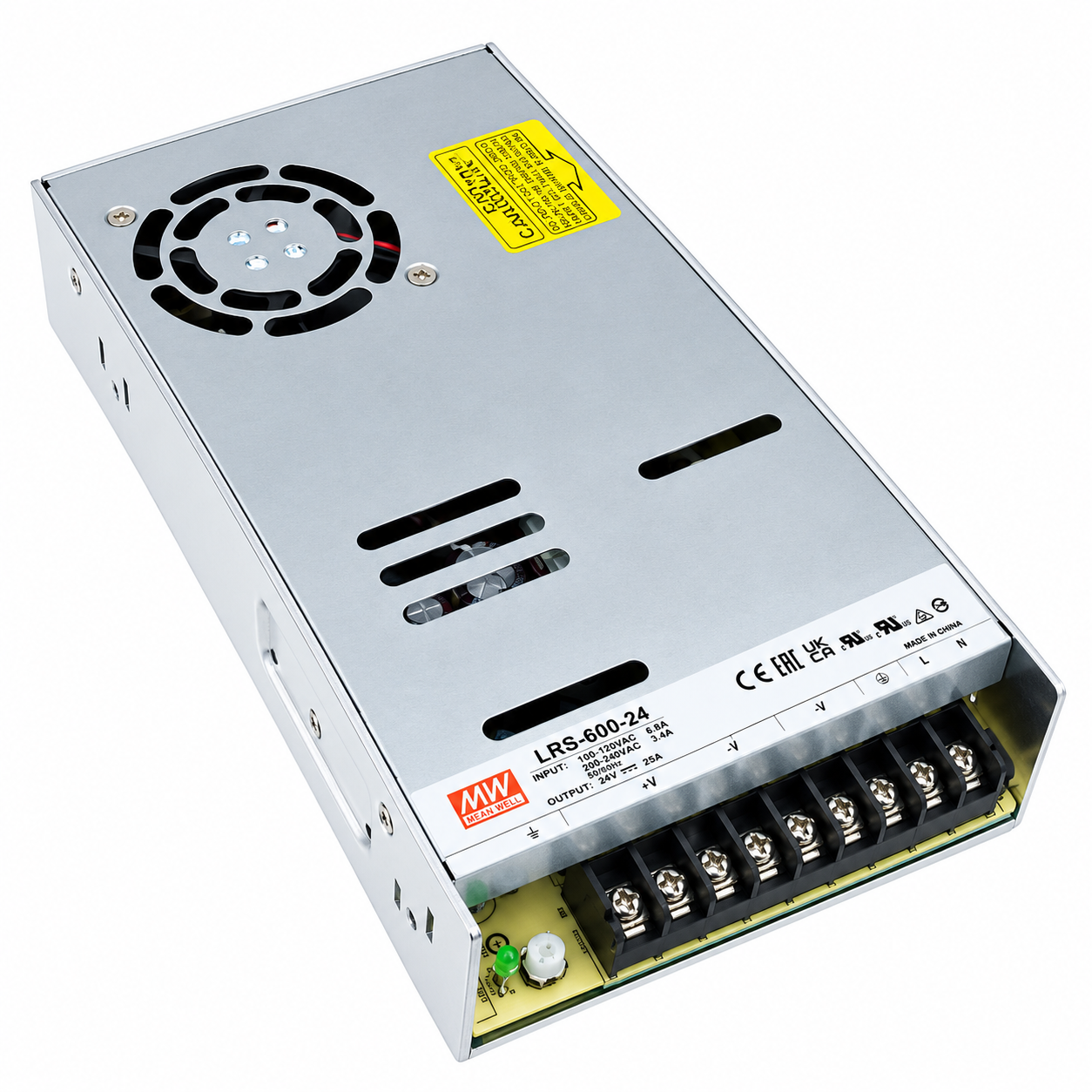

MEANWELL LRS 600-24 24V AC-DC Converter SMPS

MEANWELL LRS 600-24 24V AC-DC Converter SMPS

The LRS-600-24 is a high-performance 600W SMPS that operates from a universal AC input range of 90-132V AC / 180-264V AC or 254-370V DC. This unit delivers a regulated 24V DC output at 25A and features high efficiency (up to 90.5%) along with built-in active cooling via an internal fan with a thermal control function. Designed for durability and reliability, the LRS-600-24 includes protection against overload, overvoltage, overtemperature, and short-circuit conditions.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of Meanwell's.

• High efficiency: Up to 90.5%


• Universal AC input: 90-132V AC / 180-264V AC (switchable), 254-370V DC


• Output voltage: 24V DC


• Output current: 25A


• Compact size and lightweight design


• Built-in active cooling: Internal fan with thermal control


Specifications of MEANWELL LRS 600-24 24V AC-DC Converter SMPS

• Input Voltage Range: 90–132V AC / 180–264V AC (switchable)


• Output Voltage: 24V DC


• Output Current: 25A


• Output Power: 600W


• Efficiency: Up to 90.5%


• Output Ripple & Noise: 200mV peak-to-peak


• Overload Protection: 105-135% rated output power (constant current limiting, auto recovery)


Package Includes

• 1 x MEANWELL LRS 600-24 24V AC-DC Converter SMPS
