MEANWELL MDR-20-24 AC-DC DIN-RAIL MOUNTED SMPS

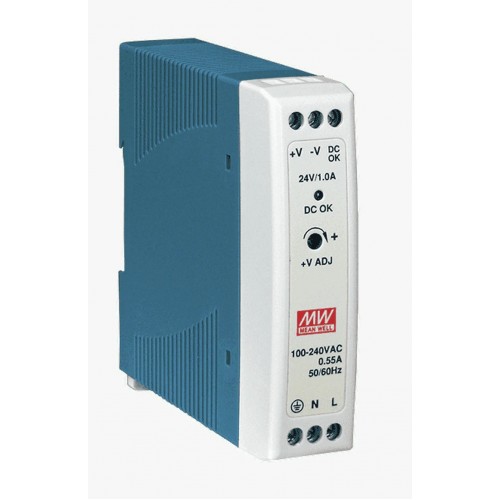

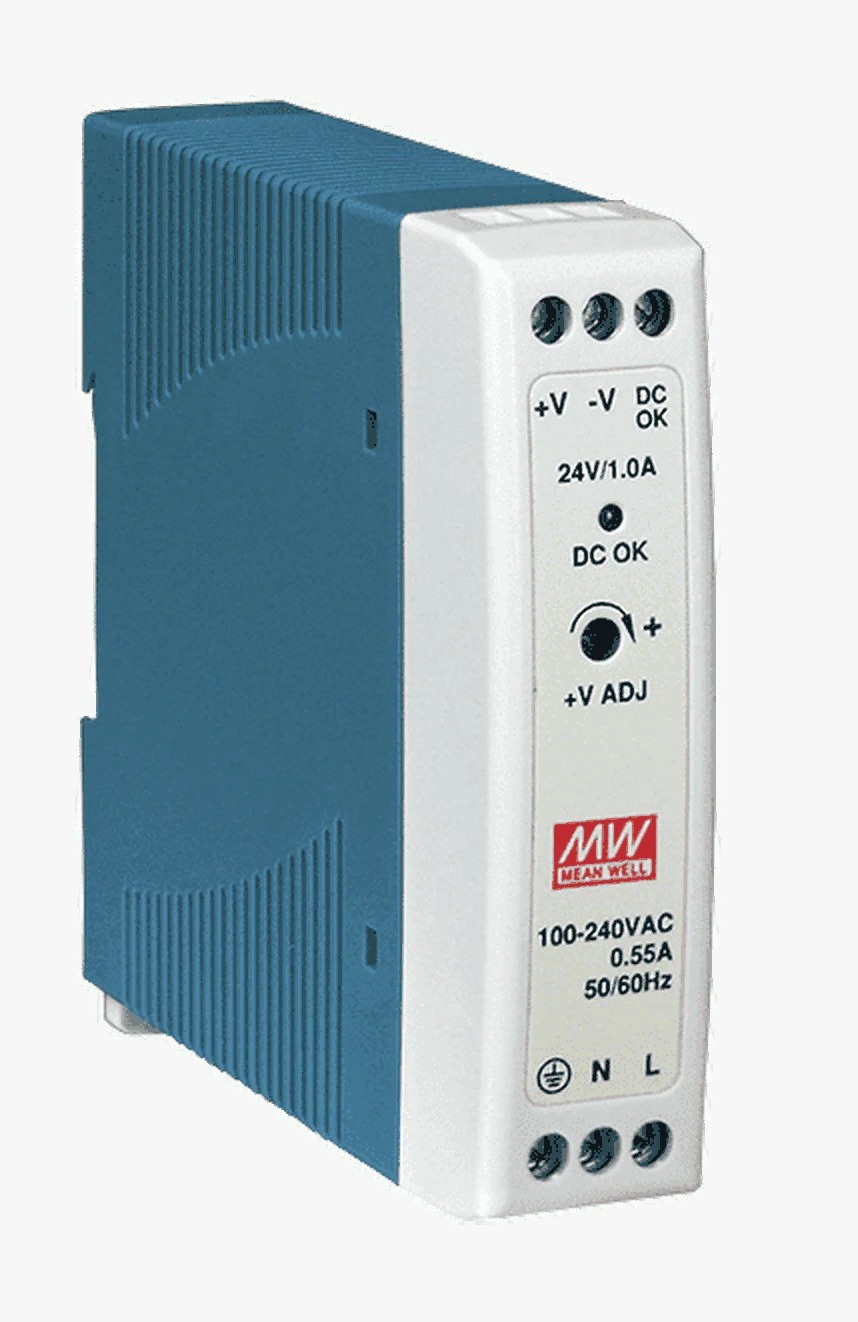

The MDR-20-24 offers a compact design with a width of 22.5mm, allowing it to fit neatly in tight spaces on DIN rails. Its plastic enclosure is designed to protect internal components while ensuring electrical safety and ease of installation. It is widely used in industrial automation systems, control panels, and machinery where reliable and efficient power conversion is required.MDR-20 series is a 24W single-output enclosed type power supply with 30mm of low profile design.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of Meanwell's.

• Compact Design: Slim size (22.5mm width) for DIN-rail mounting, saving space in industrial panels.


• Universal AC Input: Accepts a wide AC input range from 85V to 264V, supporting single-phase systems.


• High Efficiency: Offers up to 84% efficiency, reducing energy waste and heat generation.


• Built-in Protections: Includes protections for short-circuits, overloads, and over-voltage to enhance reliability and prevent damage to connected devices.


• Low No-Load Power Consumption: Less than 0.75W, making it energy efficient even in standby mode.


Specifications of MEANWELL MDR-20-24 AC-DC DIN-RAIL MOUNTED SMPS

• Input Voltage Range: 85-264V AC / 120-370V DC


• Frequency Range: 47-63Hz

• DC Output Voltage: 24V


• Output Current: 1A


• Output Power: 24W


• Efficiency: 84%


• Ripple & Noise: 150mVp-p


Package Includes

• 1 x MEANWELL MDR-20-24 AC-DC DIN-RAIL MOUNTED SMPS
