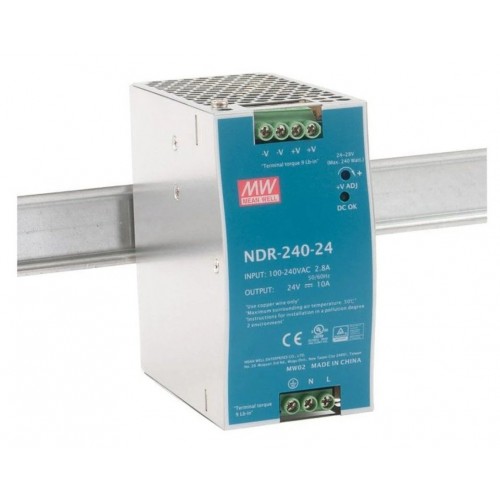

MEANWELL NDR-240-24 AC-DC DIN Rail SMPS

MEANWELL NDR-240-24 AC-DC DIN Rail SMPS

The MEAN WELL NDR-240-24 is a slim, DIN rail-mounted power supply offering 24V DC output with a power rating of 240W. This power supply is designed for industrial control systems, factory automation, and machine building. It features a universal AC input range and complies with various safety standards. The unit is enclosed in a metal case to enhance heat dissipation, and can operate in harsh environments with high ambient temperatures.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of  Meanwell's.

• Slim Design: Narrow width of 63mm to save space on DIN rails.


• High Efficiency: Up to 92% efficiency, ensuring low energy loss and reduced heat.


• Full Protection: Includes protections for short-circuit, overload, overvoltage, and over-temperature.


• Active Power Factor Correction (PFC): Complies with EN61000-3-2 to minimize harmonic distortion and improve energy efficiency.


• Wide Operating Temperature Range: Can operate in environments from -20°C to +70°C, with power derating for temperatures above +50°C.


• Convection Cooling: Cooled through free air convection, eliminating the need for a fan.


• LED Indicator: Power-on indicator for easy status monitoring.


Specifications of MEANWELL NDR-240-24 AC-DC DIN Rail SMPS

• Input Frequency: 47~63Hz


• Output Voltage: 24V DC


• Output Current: 10A


• Output Power: 240W


• Efficiency: Up to 92%


• Ripple & Noise: 150mVp-p


• Overload Protection: 105% ~ 150% rated power, with constant current limiting, recovers automatically after fault condition is removed.


Package Includes

• 1 x MEANWELL NDR-240-24 AC-DC DIN Rail SMPS
