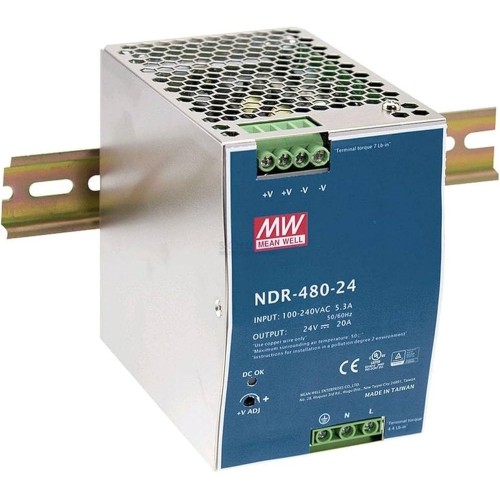

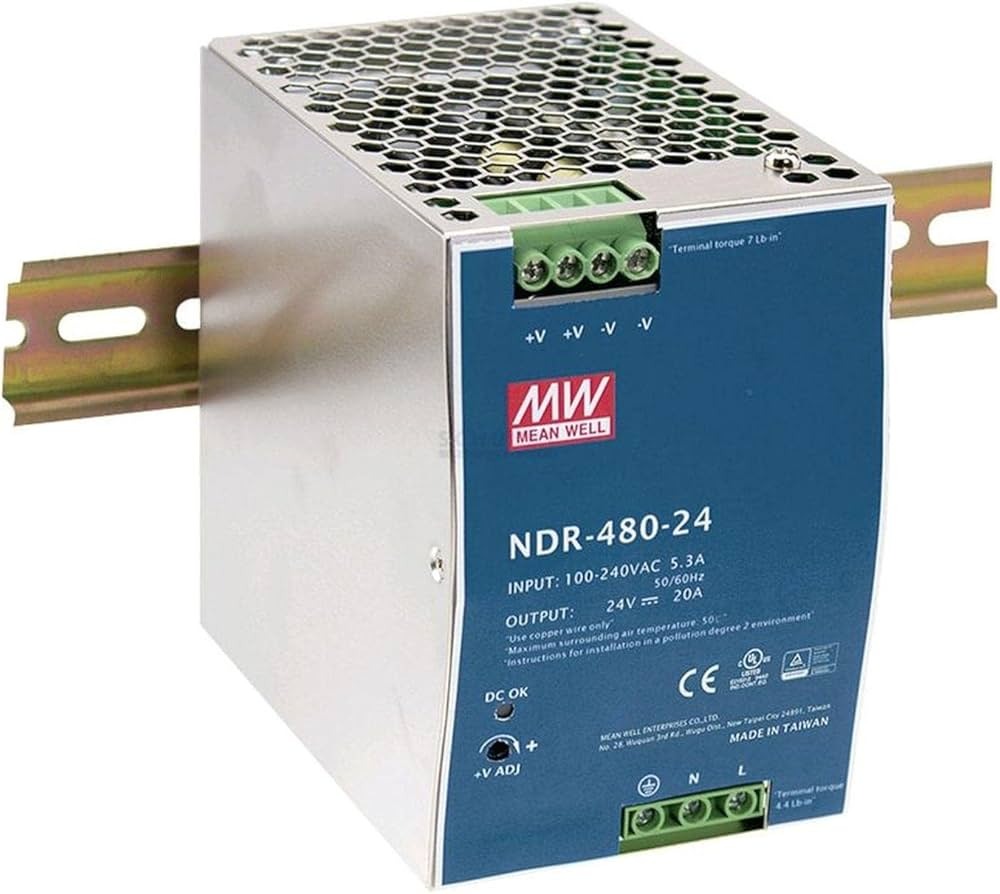

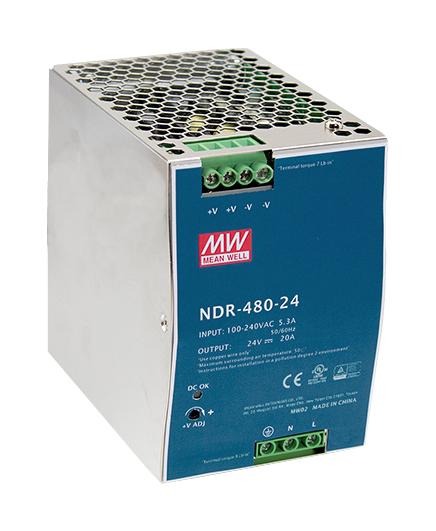

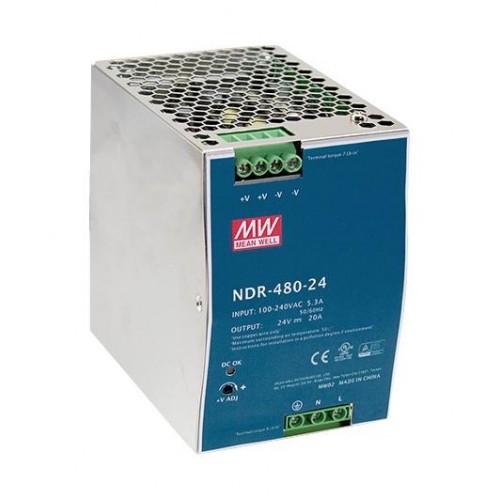

MEANWELL NDR-480-24 480W DIN-rail mountable AC-DC SMPS

MEANWELL NDR-480-24 480W DIN-rail mountable AC-DC SMPS

The MEAN WELL NDR-480-24 is a 480-watt DIN-rail mountable AC-DC power supply designed for industrial applications. It provides a reliable 24V DC output and is ideal for use in environments requiring high power density and robust performance. With a slim design, it can be easily mounted on DIN rails, saving space in control panels. The NDR-480-24 offers high efficiency, low no-load power consumption, and a fan less design, making it suitable for use in noise-sensitive applications. Its metal enclosure provides excellent heat dissipation and protection against harsh conditions.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of Meanwell's.

• High Efficiency: Offers up to 92% efficiency, reducing heat generation and energy costs.


• Slim Design: Narrow width (63mm) for optimal space-saving installation on DIN rails.


• Wide Input Range: Supports a wide AC input range from 90V to 264V AC, suitable for global industrial applications.


• Low No-Load Power Consumption: Less than 0.75W, ensuring energy efficiency even when the system is idle.


• DIN-Rail Mountable: Easily mounts on standard TS-35/7.5 or TS-35/15 DIN rails for quick and reliable installation.


• Fan less Operation: Cooled by free air convection, ensuring silent and reliable performance with no moving parts.


Specifications of MEANWELL NDR-480-24 480W DIN-rail mountable AC-DC SMPS

• Output Voltage: 24V DC


• Output Current: 20A


• Rated Power: 480W


• Input Voltage Range: 90-264V AC / 127-370V DC


• Efficiency: Up to 92%


• Ripple & Noise: 150mV peak-to-peak


• Dimensions: 63 × 125.2 × 113.5 mm


• Weight: 950g


Package Includes

• 1 x MEANWELL NDR-480-24 480W DIN-rail mountable AC-DC SMPS
