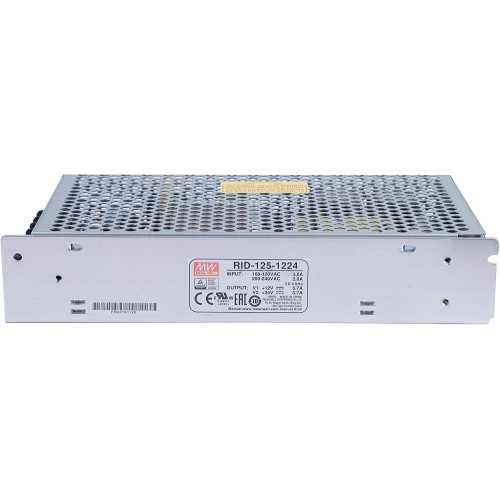

MEANWELL RID-125-1224 125W AC-DC Dual Output SMPS

MEANWELL RID-125-1224 125W AC-DC Dual Output SMPS

The RID-125-1224 is part of Mean Well’s RID series, which offers dual-output SMPS units with robust design and excellent performance. The power supply is enclosed in a compact metal casing, ensuring durability and efficient heat dissipation. It accepts a wide range of AC input voltages, which makes it adaptable to various global power standards. With an output power rating of 125W, it is suitable for use in medium-power applications where both 12V and 24V power rails are required simultaneously.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of Meanwell's.

• Isolated output & GND for CH1,CH2


• AC input range selectable by switch


• Withstand 300VAC surge input for 5 seconds


• Protections: Short circuit / Overload / Over voltage


• All using 10  5 long life electrolytic capacitors °C


• Withstand 5G vibration test


• LED indicator for power on.


Specifications of MEANWELL RID-125-1224 125W AC-DC Dual Output SMPS

• Input Voltage Range: 85 ~ 264VAC, 120 ~ 370VDC.


• Output Voltage: Channel 1 (V1): 12V DC at 6A.


• Total Output Power: 125W.


• Efficiency: 81%.


• Overload Protection: 105% - 150% of rated power (constant current limiting, with auto recovery).


• Overvoltage Protection: 13.8 - 16.2V for V1, 27.6 - 32.4V for V2.


• Operating Temperature: -10°C to +60°C (with derating above 40°C).


Package Includes

• 1 x MEANWELL RID-125-1224 125W AC-DC Dual Output SMPS
