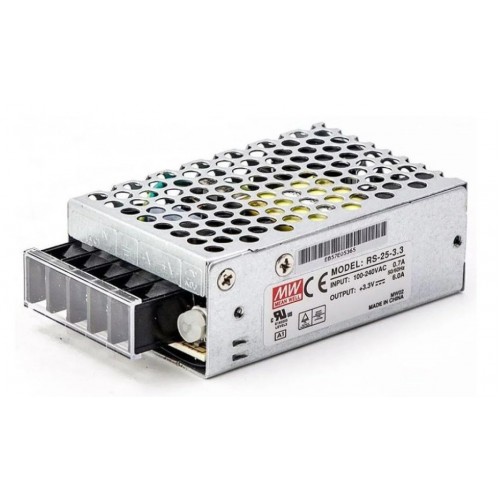

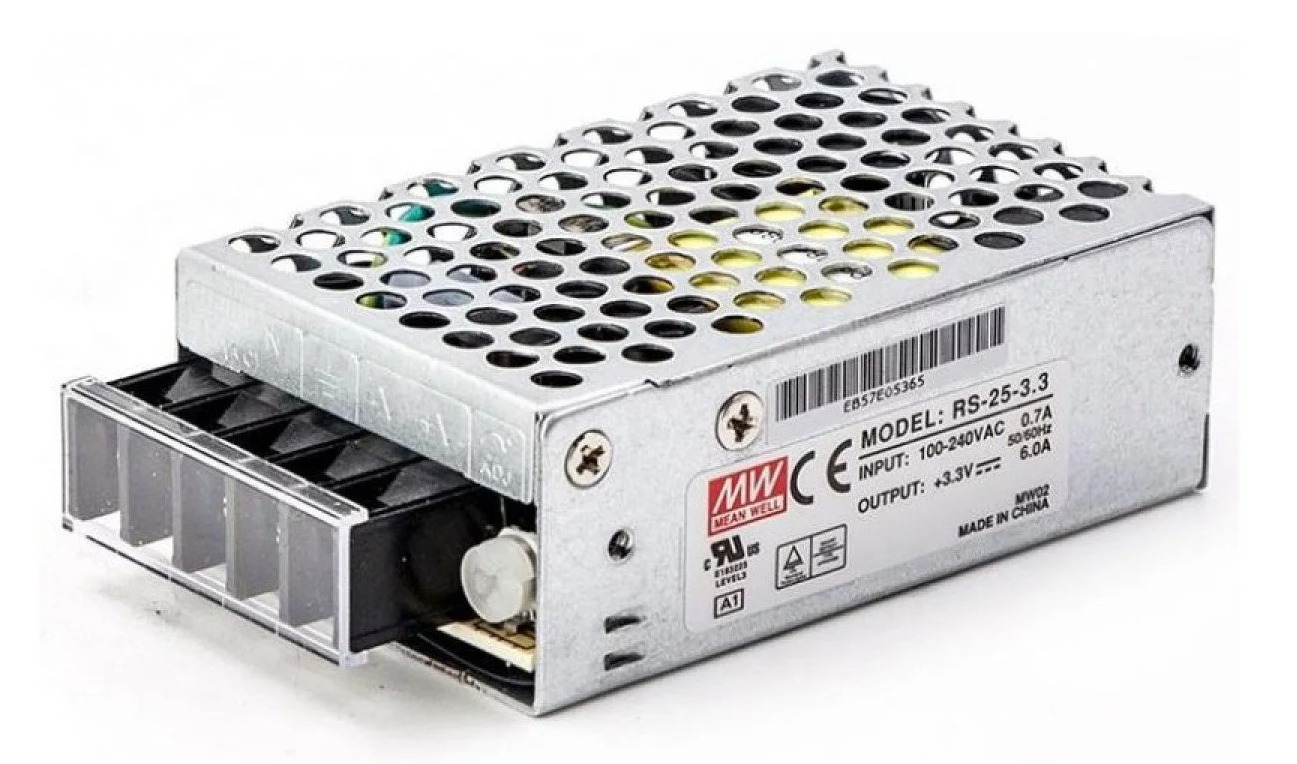

MEANWELL RS-25-3.3 25W AC-DC Enclosed SMPS

MEANWELL RS-25-3.3 25W AC-DC Enclosed SMPS

The RS-25-3.3 is a 25W power supply with a universal AC input and 3.3V output at 5A. The unit features a metal casing to protect internal components and facilitate natural air convection for cooling. Its compact size makes it suitable for small-scale industrial applications and embedded systems where space is at a premium. With high efficiency and low power consumption, it helps in reducing energy usage. The RS-25-3.3 includes various protections such as short-circuit, overload, and overvoltage protection to ensure safe and reliable operation.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of Meanwell's.

• Universal AC Input: Accepts a wide range of input voltages, from 85 to 264VAC or 120 to 370VDC, making it suitable for global applications.


• High Efficiency: Operates with up to 74% efficiency, minimizing power loss and heat generation.


• Compact Design: Small form factor with a metal enclosure, making it easy to integrate into confined spaces.


• Natural Air Convection Cooling: Cooled by free air convection, ensuring silent operation without the need for a fan.


• Full Protections: Built-in protections include short-circuit, overload, and overvoltage protection for enhanced safety and device longevity.


• Low No Load Power Consumption: Consumes less than 0.5W at no load, contributing to energy efficiency.


Specifications of MEANWELL RS-25-3.3 25W AC-DC Enclosed SMPS

• Input Voltage Range: 85 ~ 264VAC or 120 ~ 370VDC.


• Frequency Range: 47 ~ 63Hz.


• Output Voltage: 3.3V DC.


• Output Current: 5A.


• Power Output: 25W.


• Efficiency: Up to 74%.


• Ripple & Noise: 80mVp-p.


• Voltage Adjustment Range: 2.97 ~ 3.63V.


Package Includes

• 1 x MEANWELL RS-25-3.3 25W AC-DC Enclosed SMPS
