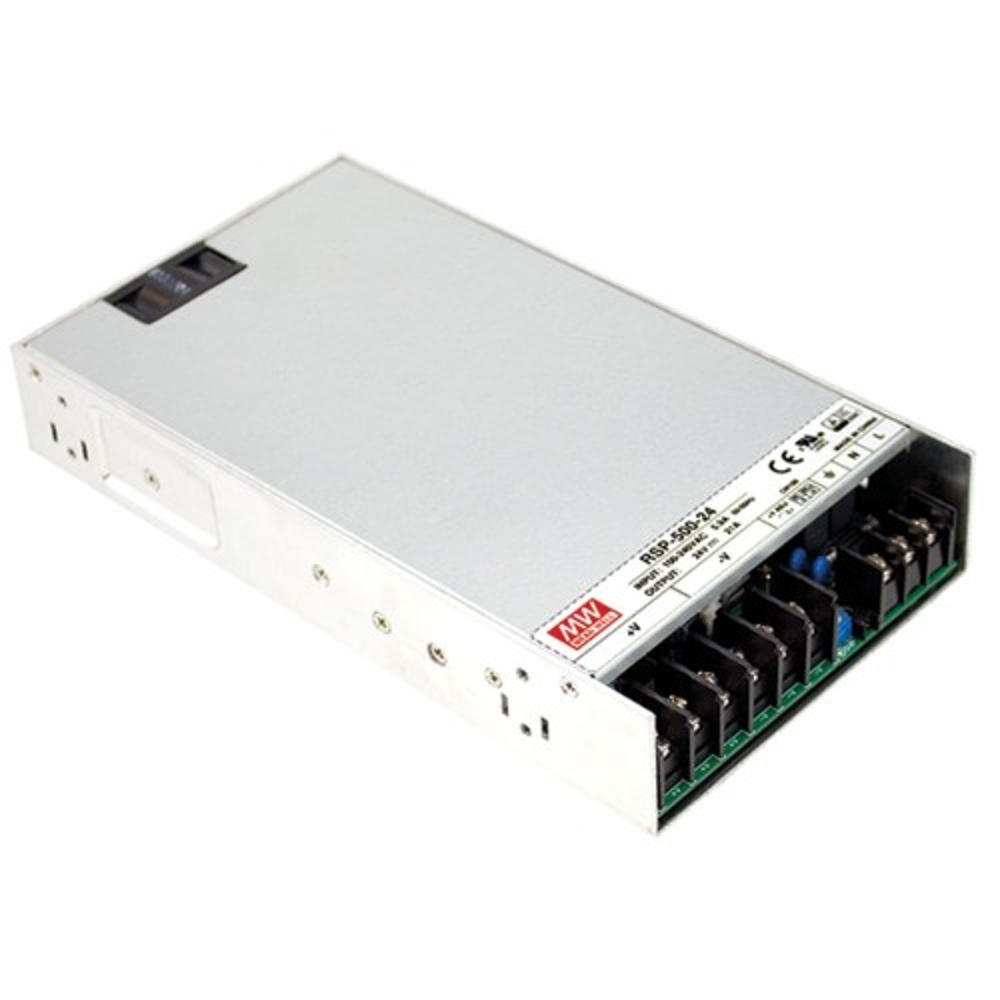

MEANWELL RSP-500-24 AC to DC Enclosed Power Supply SMPS

MEANWELL RSP-500-24 AC to DC Enclosed Power Supply SMPS

MEANWELL RSP-500-24 is RSP-500 series 500W single output enclosed type AC/DC power supply. It offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃. This provides vast design flexibility by equipping various built-in functions such as remote ON-OFF control, remote sense, DC OK signal. It includes short circuit, overload, overvoltage, over temperature protection.

DNA solutions, Nashik has various types of MEANWLL's. Check out our complete collection of MEANWLL's.

• Output DC voltage is 24V, output rated current is 21A, output rated power is 504W


• Universal AC input / full range, built-in active PFC function


• High Efficiency: The RSP-500-24 offers up to 90% efficiency, ensuring minimal energy loss and lower operating temperatures.


• Compact Design: Its low-profile design (only 41mm in height) allows for easy installation in space-constrained environments.


• Active Power Factor Correction (PFC): Meets the power factor correction requirement of EN61000-3-2 to reduce reactive power and increase efficiency.


• Wide Input Voltage Range: Operates with a universal AC input from 88V to 264V, allowing compatibility with global power systems.


• Reliable Protection: Offers comprehensive protections, including short circuit, overload, overvoltage, and overtemperature protection.


Specifications of MEANWELL RSP-500-24 AC to DC Enclosed Power Supply SMPS

• Input Voltage Range: 88V to 264V AC (47~63Hz) / 124V to 370V DC


• Output Voltage: 24V DC


• Output Current: 21A


• Rated Power: 504W


• Efficiency: Up to 90%


• Ripple & Noise: 150mVp-p


• Operating Temperature: -30°C to +70°C (de-rating required at higher temperatures)


Package Includes

• 1 x MEANWELL RSP-500-24 AC to DC Enclosed Power Supply SMPS
