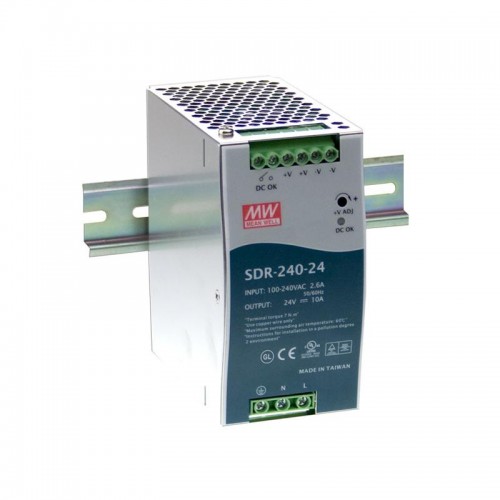

MEANWELL SDR-240-24 240W DIN Rail-Mountable Universal AC-DC SMPS

MEANWELL SDR-240-24 240W DIN Rail-Mountable Universal AC-DC SMPS

The Mean Well SDR-240-24 is a high-performance SMPS with a universal AC input and DC output of 24V at 10A. It features a slim and rugged design that allows easy installation on DIN rails, saving space in industrial enclosures. The power supply offers high efficiency up to 94%, enabling low heat generation and energy savings. Its wide input voltage range and built-in active PFC function make it suitable for global applications, ensuring compatibility with various mains supplies. It also includes comprehensive protection features, such as overload, overvoltage, and short-circuit protection.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of  Meanwell's.

• High Efficiency: Up to 94% efficiency, reducing energy loss and heat generation.


• Slim Design: Compact size for easy DIN rail mounting, saving space in industrial control panels.


• Wide Input Voltage Range: Universal AC input range of 88 to 264VAC, suitable for use in various regions.


• Active Power Factor Correction (PFC): Built-in PFC function with a power factor of >0.93 to minimize harmonic distortion and improve energy efficiency.


• High Reliability: Robust design and reliable components ensure long-term performance in industrial environments.


• Full Protection: Includes overload, overvoltage, short-circuit, and overtemperature protection for safe operation and device protection.


Specifications of MEANWELL SDR-240-24 240W DIN Rail-Mountable Universal AC-DC SMPS

• Input Voltage Range: 88 ~ 264VAC or 124 ~ 370VDC.


• Frequency Range: 47 ~ 63Hz.


• Output Voltage: 24V DC.


• Output Current: 10A.


• Power Output: 240W.


• Efficiency: 94%.


• Ripple & Noise: 150mVp-p.


• Voltage Adjustment Range: 24V to 28V.


Package Includes

• 1 x MEANWELL SDR-240-24 240W DIN Rail-Mountable Universal AC-DC SMPS
