Meanwell SDR-960-24 AC-DC DIN Rail SMPS

Meanwell SDR-960-24 AC-DC DIN Rail SMPS

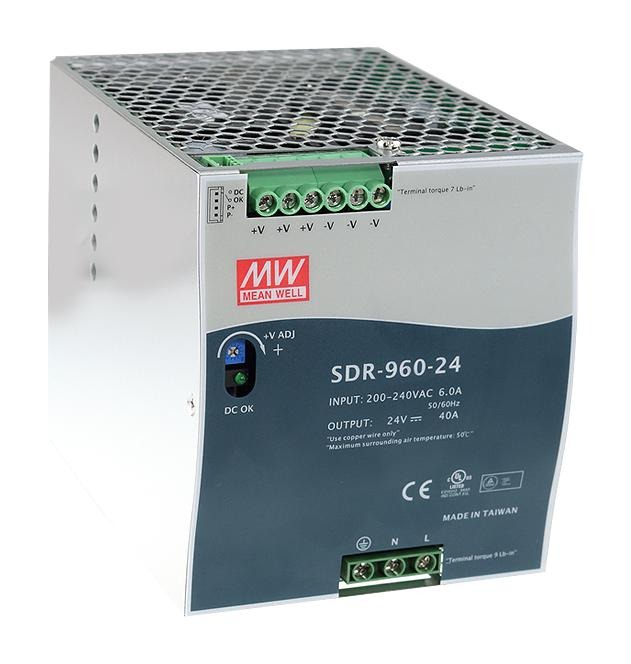

The SDR-960-24 is part of MEAN WELL's SDR series, offering a powerful 960W output with a 24V DC output voltage. It features a slim, fan-cooled design for optimal performance in environments with limited space, while its high efficiency ensures energy savings and reduced operating costs. This power supply is capable of functioning in harsh industrial environments due to its rugged build and wide temperature range.

DNA solutions, Nashik has various types of Meanwell's. Check out our complete collection of  Meanwell's.

• High Efficiency: Up to 94% efficiency, significantly reducing power loss and heat generation.


• Wide Input Range: Accepts a universal AC input voltage range from 180V to 264V AC, with an additional DC input range of 254V to 370V DC, making it adaptable to various power systems.


• Slim Design: 110mm width for compact installation on DIN rails, ideal for space-constrained industrial panels.


• Power Boost: Can provide up to 150% of its rated power for 3 seconds, allowing it to handle high inrush currents from inductive loads such as motors and capacitors.


• Built-in Active PFC (Power Factor Correction): Ensures efficient power usage with a power factor greater than 0.95, reducing the strain on the power grid.


• Fan Cooling with Intelligent Speed Control: The internal cooling fan operates based on the load, optimizing noise levels and reducing wear


Specifications of Meanwell SDR-960-24 AC-DC DIN Rail SMPS

• Input Voltage Range: 180-264V AC (single-phase) / 254-370V DC


• Frequency Range: 47-63Hz


• DC Output Voltage: 24V DC


• Output Current: 40A


• Output Power: 960W


• Power Boost: Up to 150% (1440W) for 3 seconds


• Efficiency: Up to 94%


Package Includes

• 1 x Meanwell SDR-960-24 AC-DC DIN Rail SMPS
