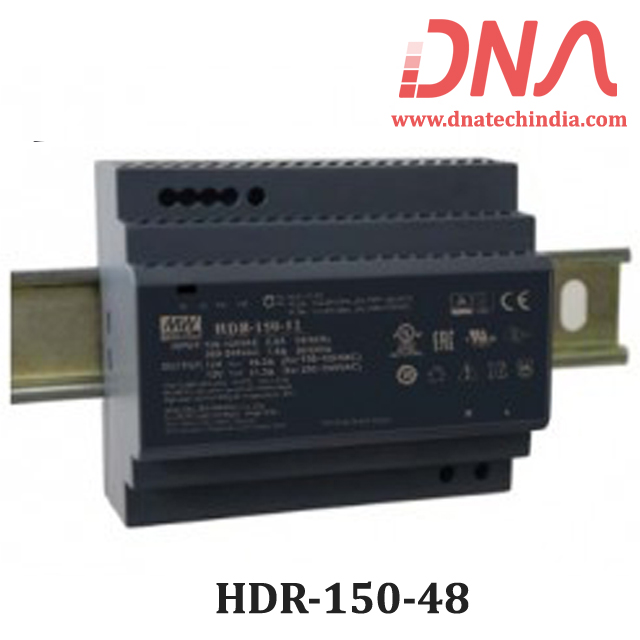

Meanwell HDR-150-48 Power Supply

48 Volts, 150 Watt Din Rail Mounting Power Supply from Meanwell

HDR-150 is an economical ultra slim 150 Watt DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 105mm(6SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current

HDR-150-48 is a high quality Industrial Grade SMPS fom Meanwell. HDR-150-48 SMPS is a 100 watt SMPS and gives 48 volts output. Meanwell HDR-150-48 switching power supply comes in mesh type casing and is very easy to mount.

Check out our Complete variety of Meanwell SMPS that we have.

Features of HDR-150-48 Meanwell SMPS

Protections : Short circuit / Overload / Over voltage / Over temperature

Universal AC input / Full range

Cooling by free air convection

LED indicator for power on

100% full load burn-in test

No load power consumption<0.5W

All using 105  long life electrolytic capacitors

Withstand 300 VAC surge input for 5 second

High operating temperature up to 70°C

Withstand 5G vibration test

High efficiency, long life and high reliability

Specification for HDR-150-48 Meanwell Power Supply

OUTPUT	Wattage  Voltage  Max Current	153.6 Watt 48 Volts 3 2 3.2 Ampere
INPUT	Efficiency Frequency Range:	90.5 % 47 ~ 63Hz
PROTECTION	Overloaded Over Volt	110 ~ 150% Rated Output Power. 56.5 ~ 64.8 Volts
ENVIRONMENT	Working Temp: Working Humidity: Storage Temp:  Vibration:	-30 ~ +70°C 20 ~ 90% RH non-condensing -40 ~ +85, 10 ~ 95% RH 10 ~ 500Hz, 5G 10min./1cycle, period for  60min. each along X, Y, Z axes
