Melexis MLX90615 Non-Contact Infrared Thermometer

Melexis MLX90615 is Non Contact Digital Plug & Play Infrared Thermometer in an Ultra Small TO-can is an Infra Red thermometer for non contact temperature measurements.

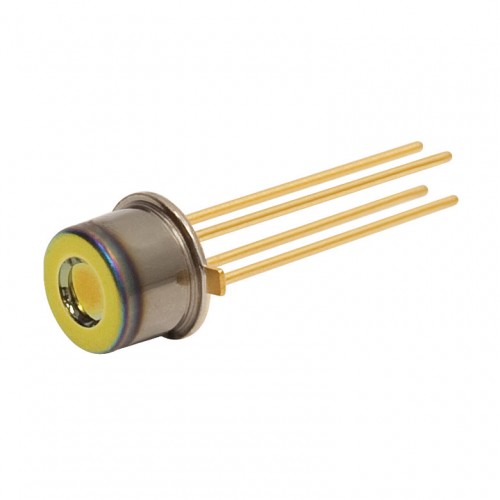

The MLX90615 integrates both the IR sensitive thermopile detector chip and the signal conditioning ASIC in the same miniature TO-46 can. Its ultra small size makes it extremely well suited for medical applications like ear thermometers or other applications where "small things make a big difference". The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02°C. The user can configure the digital output to be PWM.

You can easily find Arduino libraries for MLX90615 Non contact temperature Sensor. It is very easy to use.

Features of MLX90615 Infrared Thermometer

• Easy to use

• Factory calibrated IR thermometer with linear digital output

• Small size TO-46 can, easy to integrate

• Streamlined production

• 2.4-3.3V supply voltage with power saving mode for battery operation

• SMBus interface or PWM temperature output

• Performance

• Standard calibration in wide temperature range: ambient temperature from -20 to 85°C object temperature from -20 to 115°C

• Better than ±0.1°C accuracy in the range 30-40°C

• 0.02°C readout resolution

• Quality

• High reliability and long-term stability

• Trace-ability through unique ID number in memory

• RoHS compliant

Applications of MLX90615

• Ear thermometer : fast and easy fever measurement

• Body temperature monitoring : monitoring the temperature of patients during operation or people in intense physical effort (athletes, firefighters, soldiers).

• Home healthcare : measuring temperature in home use health equipment, 24/7 body temperature tracking

• Mobile telephones : The MLX90615 is so small and easy to integrate, it can easily fit into handheld devices
