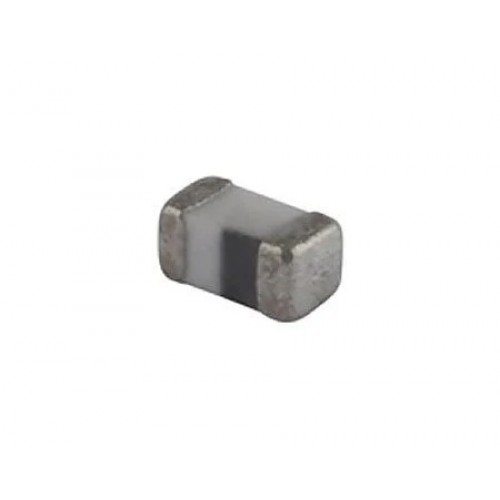

MFBM1V2012-000-R Ferrite Bead

MFBM1V2012-000-R Multilayer chip Ferrite Bead

The MFBM1V2012-000-R is a surface-mounted ferrite bead designed to attenuate high-frequency noise and reduce electromagnetic interference in electronic circuits. It is typically used in applications requiring minimal noise interference, such as power supplies, RF circuits, and data lines.

DNA solutions, Nashik has various types of Resistor's. Check out our complete collection of Resistor's.

• High Impedance: Offers high impedance at high frequencies to effectively attenuate noise.


• Low DC Resistance: Ensures minimal impact on the overall circuit performance.


• Compact Size: The 2012 (0805) package is suitable for space-constrained applications.


• Wide Frequency Range: Effective over a broad frequency spectrum, making it versatile for various applications.


• Surface Mount Technology (SMT): Allows for easy integration into modern PCB designs.


Specifications of MFBM1V2012-000-R Ferrite Bead

• Impedance @ 100 MHz: 200 Ω ±25%


• DC Resistance (DCR): Max 0.1 Ω


• Rated Current: 1 A


• Frequency Range: Effective in the 30 MHz to 1 GHz range


• Operating Temperature Range: -55°C to +125°C


• Package Size: 2012 (0805 metric)


• Dimensions: 2.0 mm x 1.2 mm x 0.9 mm (L x W x H)


Package Includes

• 1 x MFBM1V2012-000-R Ferrite Bead
