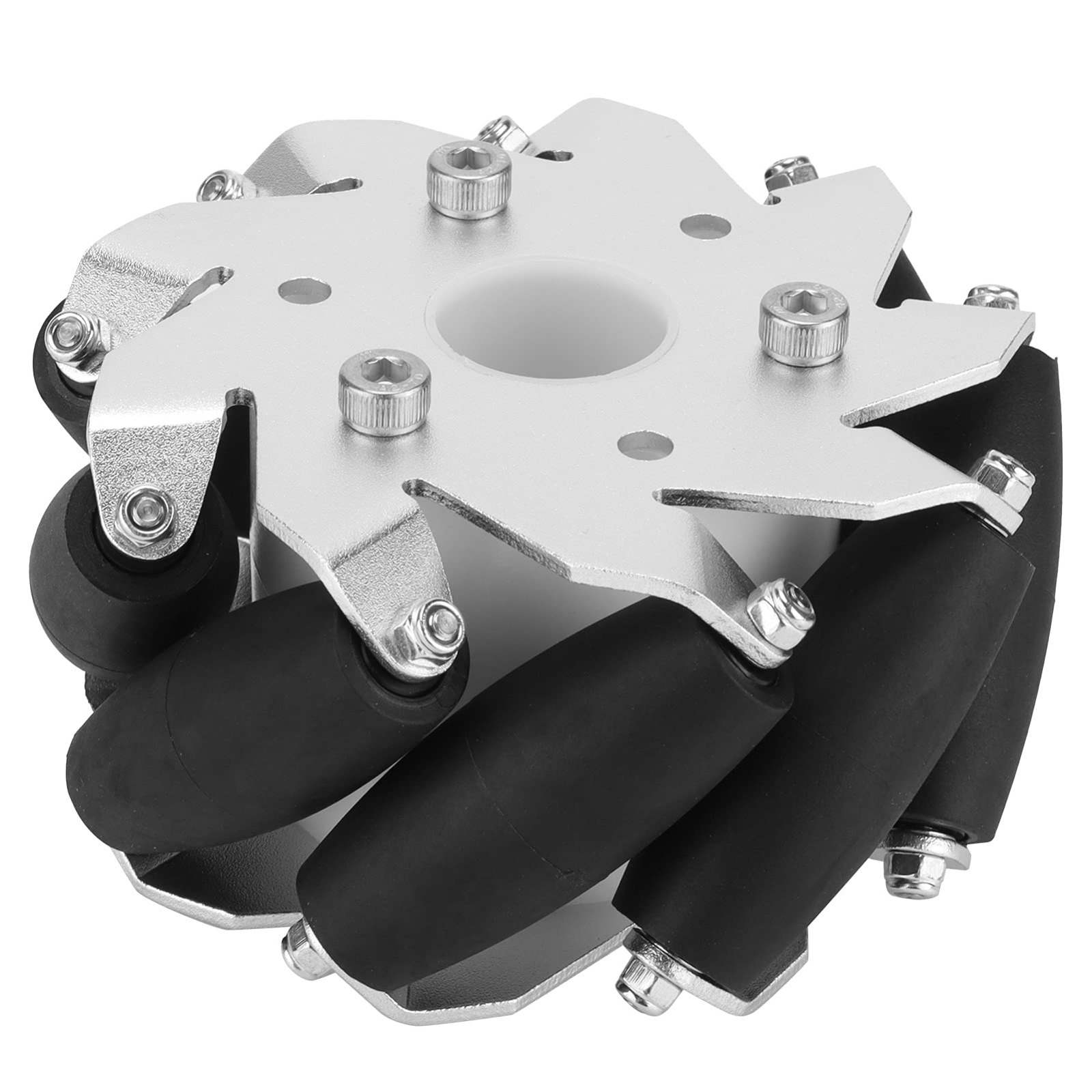

100mm Aluminium Mecanum wheels (Bush type rollers) Right

 100mm Aluminium Mecanum wheels (Bush type rollers) Right

The 100mm Aluminum Mecanum wheels (Bush type rollers) allow a robot to achieve omnidirectional movement while supporting large weights. The 4(100mm) Mecanum wheel utilize 9 rollers positioned between 2 plates. These mecanum wheels are usually designed for movement in any direction. The rollers translate the force in the rotational direction of the wheel to a force normal to the wheel direction. The Mecanum wheels allow a robot to achieve omnidirectional movement while supporting large weights. The 4(100mm) Mecanum wheel utilize 9 rollers positioned between 2 plates.

DNA solutions, Nashik has various types of Wheel's. Check out our complete collection of Wheel's.

• Size :4(100mm) Diameter


• Thickness of wheel: 50mm


• Weight: 340grams.


• Roller Material: Nitrile rubber


• Side plates: Aluminum(High-Grade alloy aluminum)


• Plate Thickness 2.5mm


• Bearing Type used: Single groove ball bearing, Double sealed.


Specifications of  100mm Aluminium Mecanum wheels (Bush type rollers) Right

• Roller Type- Bush


• Body Material- Aluminum


• Internal Diameter(ID)(mm)- 18


• Length of Roller (mm) - 47.5


• Load Capacity(Kg/Wheel) -8 ~ 10


• Net weight (gm) -400


Package Includes

• 1 x  100mm Aluminium Mecanum wheels (Bush type rollers) Right
