The transmission occurs at the rate of 1Kbps – 10Kbps. The transmitted data is received by an RF receiver operating at the same frequency as that of the transmitter.

433mHz Tx RF Radio Module comprises an RF Transmitter and an RF Receiver. The transmitter/receiver (Tx/Rx) pair operates at a frequency of 433 MHz. An RF transmitter receives serial data and transmits it wirelessly through RF through its antenna connected at pin4.

This low-cost RF transmitter can be used to transmit signals up to 100 meters (the antenna design, working environment, and supply voltage will seriously impact the effective distance). It’s good for a short distance, battery power device development. 433 MHz is the operating frequency for transmitter and receiver pair.

DNA solutions, Nashik has various types of Communication Module's. Check out our complete collection of  Communication Modules.

• The device in deep sleep mode when Data pin is grounded

• Easy to integrate (V , GND, and D)

• Wide input supply (2.5 V to 12V)

• Very small dimension.

• Transmitter Module


        Technical parameters of
        Product Model: XD-FST

• Operating mode: AM


• Launch distance:20-200 meters (different voltage, different results)


• Transfer rate: 4KB / S


• Transmitting power: 10mW


• Operating voltage :3.5-12V


• Dimensions: 19 * 19mm


• Transmitting frequency: 433M


• Pinout from left-right: (DATA; VCC; GND)

Receiver Module:

• Product Model: XD-RF-5V


• Receiving frequency: 433.92MHZ


• Receiver sensitivity: -105DB


• Size:30x14x7mm


• Operating voltage: DC 5V


• Quiescent Current: 4mA


Package Includes

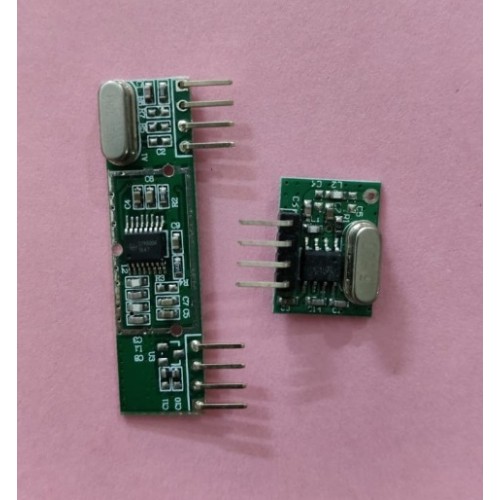

1 x 433Mhz MU3100 Module
