433MHz RF TRANSMITTER AND RECEIVER WIRELESS MODULE

433MHz RF TRANSMITTER AND RECEIVER WIRELESS MODULE

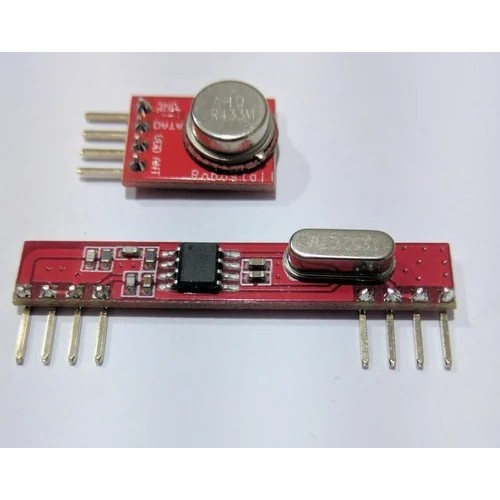

The 433MHz RF TRANSMITTER AND RECEIVER WIRELESS MODULE Transmitter Module: Sends data wirelessly at a frequency of 433 MHz. It converts digital signals from a microcontroller into radio signals. Receiver Module: Receives radio signals sent by the transmitter and converts them back into digital signals for the microcontroller to process. Operating Voltage: Both the transmitter and receiver typically operate at a voltage range of 3V to 12V (commonly 5V for standard use). Communication Type: ASK (Amplitude Shift Keying) modulation for simple data transmission. Range: Varies depending on power supply, obstacles, and antenna design. Typically 50 to 100 meters in open spaces, but less in indoor environments.

DNA solutions, Nashik has various types of Wireless Module's. Check out our complete collection of Wireless Module's.

Features of 433MHz RF TRANSMITTER AND RECEIVER WIRELESS MODULE

• Frequency: Operates at 433 MHz, a commonly used frequency for wireless communication.


• Low Power Consumption: Suitable for battery-powered applications with minimal energy use when idle.


• Simple Interface: Easy to interface with microcontrollers such as Arduino, Raspberry Pi, and PIC via simple digital pins.


• Modulation Technique: Uses ASK (Amplitude Shift Keying) for wireless data transmission, which is easy to implement but less robust than more complex methods like FSK.


• Transmitter Specifications: Operating Voltage: Typically 3V to 12V.


Specifications of 433MHz RF TRANSMITTER AND RECEIVER WIRELESS MODULE

• Dimensions: 19 * 19mm

• Receiving frequency: 433.92MHZ

• Operating mode: AM

• Receiver sensitivity: -105DB

• Transfer rate: 4KB / S

• Size:30x14x7mm

• Product Model: XD-RF-5V

• Operating voltage: DC5V

• Operating voltage :3.5-12V

• Quiescent Current: 4MA

Package Includes

• 1 x 433MHz RF TRANSMITTER AND RECEIVER WIRELESS MODULE
