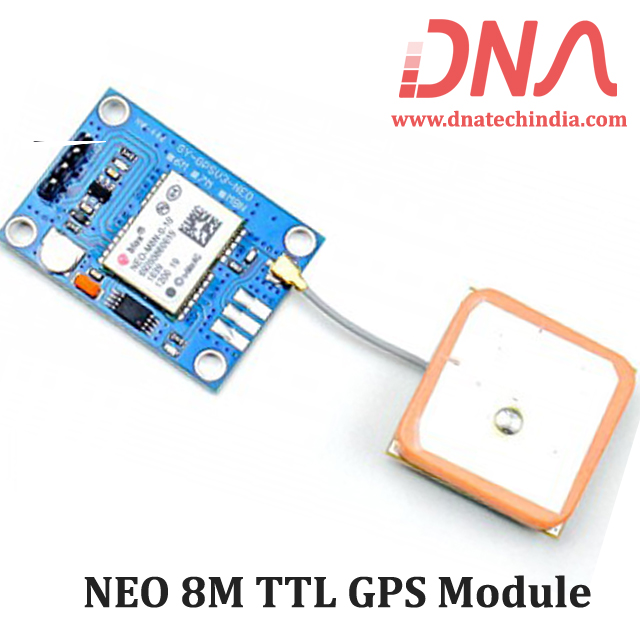

The APM2.5 UBlox NEO-M8N GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. Ublox's NEO-M8N offers high performance also at low power consumption levels. The future proof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules are built on the high performing u-Blox M8 GNSS engine in the industry proven NEO form factor.NEO-M8N GPS Module provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

We have various types of GSM & GPS Modules. Check our complete collection of GSM & GPS Modules.

Features of Ublox Neo 8M TTL GPS Module

• The ceramic antenna provides a very strong signal
• With LED indicator lamp
• The default baud rate: 9600.
• With data backup battery.
• LED signal indicator.
• Compatible with various flight controller module.
• EEPROM save the configuration parameter data when power-down.
• Assistance AssistNow GNSS Online
• AssistNow GNSS Offline (up to 35 days)
• AssistNow Autonomous (up to 6 days)
• OMA SUPL & 3GPP compliant
• Oscillator TCXO
• Built-in RTC crystal
• Anti-jamming Active CW detection and removal.
• Extra onboard SAW bandpass filter
• Memory Flash
• Supported antennas Active and passive
• Odometer Travelled distance
• Data-logger For position, velocity, and time

Specification of Ublox Neo 8M TTL GPS Module

• Model : Ublox NEO-M8N
• Receiver Type : 72-channel Ublox M8 engine.
• Supply Voltage (V) : 3~5 v
• Main Chip : Ublox NEO-M8N
• Sensitivity : Cold Start (without aiding): -147 dBm / Hot Start: -156 dBm
• Position Accuracy : Autonomous: 2.5 m/ SBAS: 2.0 m
• Acceleration : <4g
• Navigation Update Rate : up to 18 HZ.
• Operating Temperature Range : -45ºc to 105°c
• Tracking Sensitivity : -161 dBm
• Co-Ordinate System : WGS-84
• Capture Time : 0.1s Average
• Cold Start Time : 30s
• Warm Start Time : 1s
• Boot Time : 1s Average
• Maximum Altitude : 18000
• Dimensions (mm) LxWxH : Antenna: 26 x 26 x 9/ Module: 26 x 36 x 4
• Weight (gm) : 17

Related Links

• U-Blox Neo M8N U-Center configuration and Arduino parser sketch
• U-Blox Neo 8M Datasheet

Package Includes

• 1 x APM 2.5 Ublox NEO M8N GPS Module.

• 1 x Ceramic Active Antenna.
