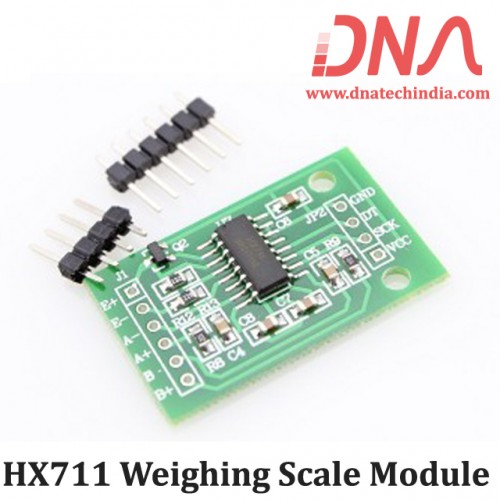

HX711 Weighing Scale Module

HX711 is an IC that allows you to easily integrate load cell into your project.

No need of any amplifiers or dual power supply just use this board and you can easily interface it to any micro-controller to measure weight.

HX711 consists of an amplifier and a precision 24-bit analog-to-digital converter designed for weigh scale and industrial control applications to interface directly with a load cell. The HX711 uses a two wire interface (Clock and Data) for communication. Compared with other chips, HX711 has added advantages such as high integration, fast response, immunity, and other features improving the total performance and reliability. Finally it's one among the best choices for electronic enthusiasts. The chip lowers the cost of the electronic scale,at the same time,improving performance and reliability.

We have Various sizes of GPS-GSM Module. Check out our complete collection of ADC and DAC Modules.

Features of HX711 Weighing Scale Module

• Operation Voltage : 2.7V-5V

• Operation Current : < 1.5mA

• Selectable 10SPS or 80SPS output data rate

• Simultaneous 50 and 60Hz supply rejection

NOTE: This is Just the Module it comes without Load Cell.
