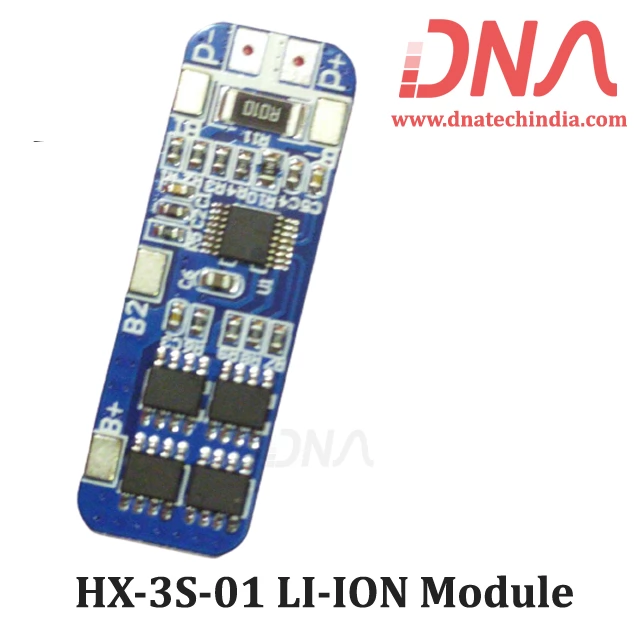

HX-3S-01 LI-ION 11.1V 3S charger Module

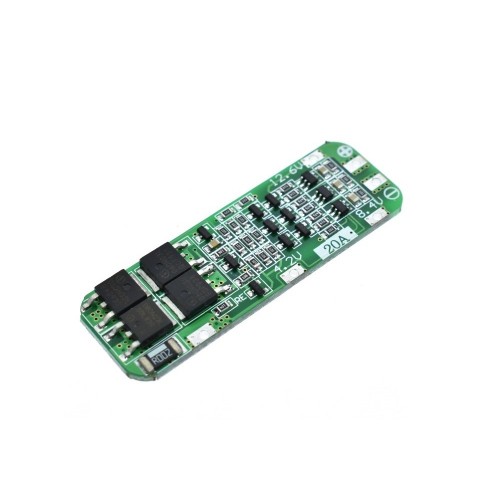

HX-3S-01 Li-Ion Battery Charging Module

This is a Lithium-Ion charge protection circuit comes with over-charge, over-discharge, over-current and short circuit protection, for a variety of various shapes 3.7 Volt lithium Ion batteries. HX-3S-01 is Small size, suitable for many requirements of high integration, low cost of the occasion, to meet a wide range of performance requirements to ensure that the battery pack is absolutely safe and reliable.

We have various types of Load Cells, Force Sensor, Flex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

• 3 Series 12 Volts 18650 Lithium Battery Protection Board.

• Model : HX-3S-01

• Charging voltage range : 4.25-4.35 volts  + 0.05 volts

• Size : 50 x 16 x 1.0 mm

• Discharge voltage range : 2.3-3.0 volts + 0.05 volys

• The maximum working current : 5-8 Ampere

• Operating temperature : -40 to +50 degrees

• The maximum instantaneous current : 9-10 Ampere

• Storage conditions : -40 to +80 C

• Static current : less than 6uA

• Effective life : 30000 hours

• Resistance : less than 60m ohm

• Short circuit protection : protection, delayed recovery.

• Components for Seiko S-8254AA protection chip and genuine FDS 4435A*4
