• MAX30100 Pulse Oximeter and Heart Beat Sensor

Product Images are shown for illustrative purposes only and may differ from actual product.

MAX30100 Pulse Oximeter and Heart Beat Sensor

  • Stock: 45
  • SKU: 0692 | DAA751
  • Rs. 184.08 (inc GST)
    Rs.156.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

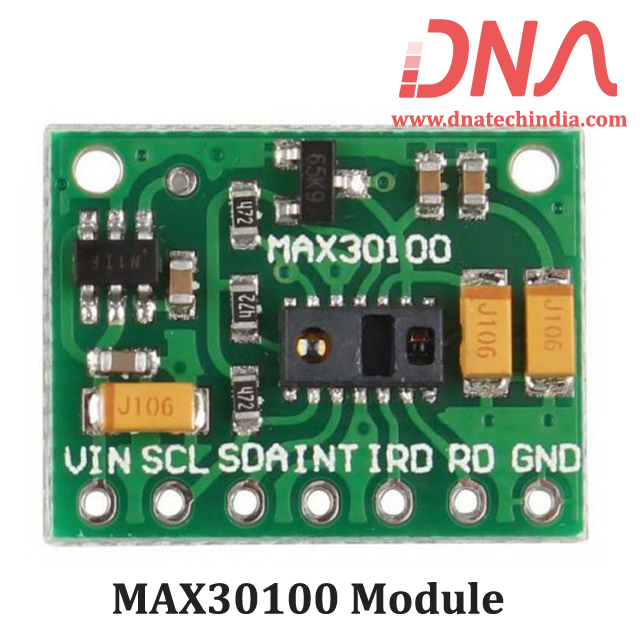

MAX30100 Module

Pulse Oximeter and Heart Beat Sensor Module

This is a Pulse Oximeter and Heart rate Sensor module based upon Maxim's MAX30100 integrated IC which is an compact low cost integrated solution for measuring Heart Rate as well as Pulse oximeter.

MAX30100 sensor has two led's and a Photo-detector the two led's are used to emit two different wavelength of light. One led is a red led while the other one is an infrared led. The photo-detector is then used to sense the absorbance of the blood flowing through the finger tip. This signal is then processed using a low noise analog signal processing unit and then an internal micro-controller then converts it into digital output and gives out data in i2c protocol.

MAX 30100 Sensor Module has an inbuilt voltage regulator so it can be powered via 5 Volt and can be interfaced to any 5 volt micro-controllers, Arduino as well as Raspberry Pi.

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MAX 30100 Pulse Oximeter and Heart Beat Sensor

  • Complete Pulse Oximeter and Heart-Rate Sensor Solution Simplifies Design

  • Integrated LEDs, Photo Sensor, and High-Performance Analog Front-End

  • Tiny 5.6mm x 2.8mm x 1.2mm 14-Pin Optically Enhanced System-in-Package

  • Ultra-Low-Power Operation Increases Battery Life for Wearable Devices

  • Programmable Sample Rate and LED Current for Power Savings

  • Ultra-Low Shutdown Current (0.7µA, typ)

  • Advanced Functionality Improves Measurement Performance

  • High SNR Provides Robust Motion Artifact Resilience

  • Integrated Ambient Light Cancellation

  • High Sample Rate Capability

  • Fast Data Output Capability

Applications of Pulse Oximeter and MAX30100 Heart Beat Sensor

  • Fitness Assistant Devices
  • Medical Monitoring Devices
  • Wearable Devices

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
