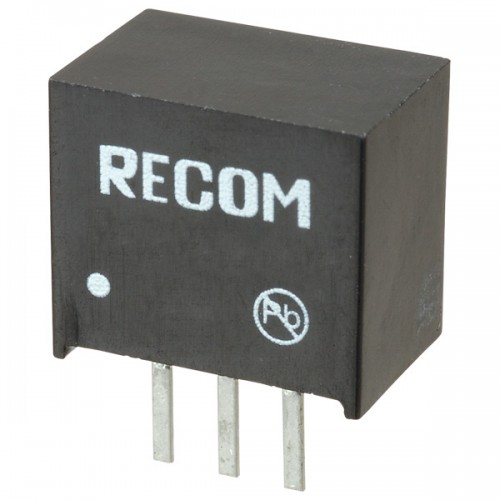

R-78E5.0-0.5 DC to DC Converter (RECOM MAKE)(5V, 0.5A)

R-78E5.0-0.5 DC to DC Converter (RECOM MAKE)

The R-78E series is a switching regulator module that has been designed to offer all the advantages of a switching regulator (high efficiency, wide input range, accurate output voltage regulation) but with a low cost for production quantities. Due to the R-78E’s high efficiency of up to 95% no heat-sink is required. The compact TO-220 compatible SIP3 package measures only 11.6 x 8.5 x 10.4mm, so it saves precious board space.

DNA solutions, Nashik has various types of DC to DC Converter's. Check out our complete collection of DC TO DC Converter's.

• High Efficiency: Up to 90%, which reduces heat generation and power loss.


• Wide Input Voltage Range: 7V to 28V DC, making it versatile for various applications.


• Output Voltage: Stable 5V DC output.


• Output Current: Up to 0.5A (500mA).


• Pin Compatibility: Pin-out compatible with LM78XX linear regulators, making it easy to replace in existing designs.


• No Heat Sink Required: Due to its high efficiency, it typically does not require additional cooling or a heat sink.


• Short Circuit Protection: Provides protection against output short circuits


Specifications of R-78E5.0-0.5 DC to DC Converter (RECOM MAKE)

• Low cost switching regulator


• High start-up current capability


• Efficiency up to 95%


• Short circuit protection


• Pin compatible with 78 series regulators


• Non isolated DC-DC converter


• IEC/EN60950-1+ AM2 certified


Package Includes

1 x R-78E5.0-0.5 DC to DC Converter (RECOM MAKE)
