LTC3108 -1 ultra low voltage boost Thermal Energy Harvesting Module

LTC3108 Low Voltage Energy Harvesting Module

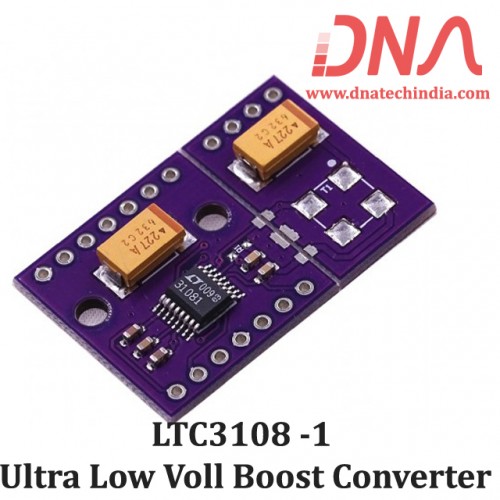

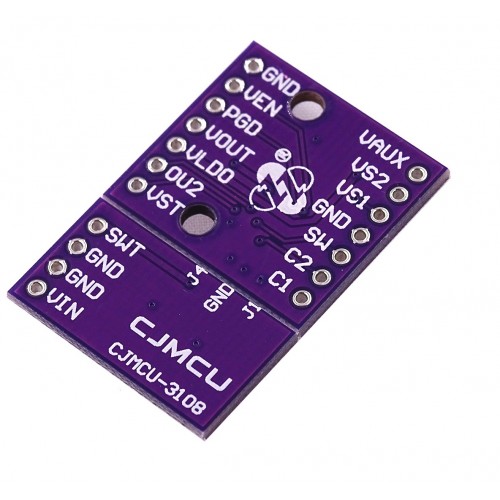

This is a Breakout Board for Linear Technologies LTC3108 IC. The LTC3108-1 is a highly integrated DC/DC converter ideal for harvesting and managing surplus energy from extremely low input voltage sources such as TEGs (thermoelectric generators), thermopiles and small solar cells. The step-up topology operates from input voltages as low as 20mV.

Using a small step-up transformer, the LTC3108-1 provides a complete power management solution for wireless sensing and data acquisition. The 2.2V LDO powers an external microprocessor, while the main output is programmed to one of four fixed voltages to power a wireless transmitter or sensors. The power good indicator signals that the main output voltage is within regulation. A second output can be enabled by the host. A storage capacitor provides power when the input voltage source is unavailable. Extremely low quiescent current and high efficiency design ensure the fastest possible charge times of the output reservoir capacitor. The LTC3108-1 is functionally equivalent to the LTC3108 except for its unique fixed VOUT options.

We have Various sizes of DC to DC Converter Modules. Check out our complete collection of DC to DC Converter Modules.

Feature of LTC3108 Module

• Operates from Inputs of 20mV

• Complete Energy Harvesting Power Management System

• Selectable VOUT of 2.35V, 3.3V, 4.1V or 5V

• LDO : 2.2V at 3mA

• Logic Controlled Output

• Reserve Energy Output

• Power Good Indicator

• Uses Compact Step-Up Transformers

Application of LTC3108 Module

• Remote Sensors and Radio Power

• Surplus Heat Energy Harvesting

• HVAC Systems

• Industrial Wireless Sensing

• Automatic Metering

• Building Automation

• Predictive Maintenance

Related Links

• LTC3108-1 Datasheet

NOTE: This Module does not come with LPR6235 Coupled Inductor. You can by it from here.
