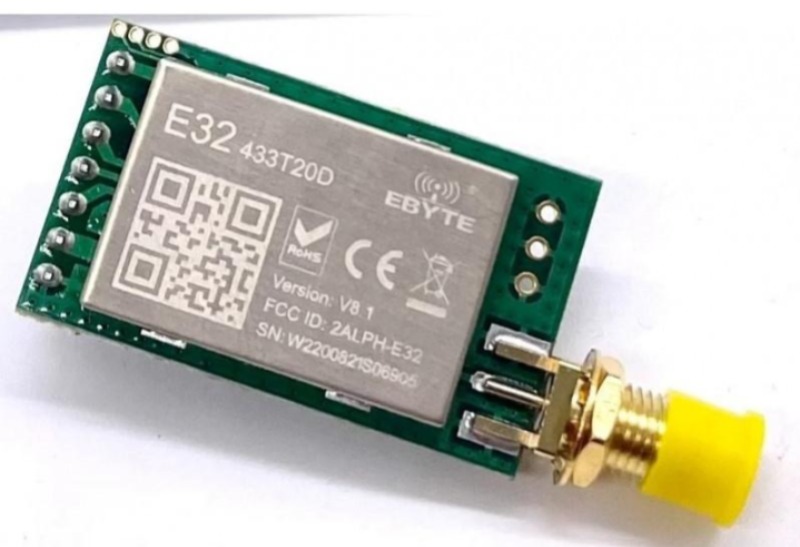

E32-433T20D 433MHz Frequency Wireless Transceiver Module

E32-433T20D 433MHz Frequency Wireless Transceiver Module

The E32-433T20D is a high-performance wireless transceiver module with a transmission power of 20dBm (100mW). It operates in the 433 MHz ISM frequency band, which is commonly used for unlicensed communication in many regions. This module uses LoRa spread spectrum technology, allowing it to achieve long-range communication with excellent anti-interference capabilities, low noise, and high sensitivity. The module also supports various transmission modes and adjustable data rates, making it adaptable to different environmental and application needs.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of  Module's.

• LoRa Technology: Utilizes LoRa spread spectrum modulation for long-range communication, offering increased range and robustness against interference.

• 433 MHz Frequency- Operates in the 433 MHz ISM band, commonly used for long-range wireless communication.

• High Transmission Power- Capable of transmitting at 20dBm (100mW), enabling reliable communication over long distances, even in challenging environments.

• Low Power Consumption:- Optimized for low-power operation, making it suitable for battery-powered and energy-efficient IoT applications.

• Long Communication Range:- Offers a communication range of up to 5 km (depending on the environment, antenna, and transmission conditions).

Specifications of E32-433T20D 433MHz Frequency Wireless Transceiver Module

• Frequency Band: 433 MHz (ISM band)


• Output Power: 20dBm (100mW)


• Receiver Sensitivity: -138dBm


• Data Rate: 0.3kbps to 19.2kbps


• Communication Range: Up to 5 km (line-of-sight, depending on environment and antenna)


• Modulation: LoRa spread spectrum


• Supply Voltage: 3.3V to 5.2V


Package Includes

• 1 x E32-433T20D 433MHz Frequency Wireless Transceiver Module
