Description

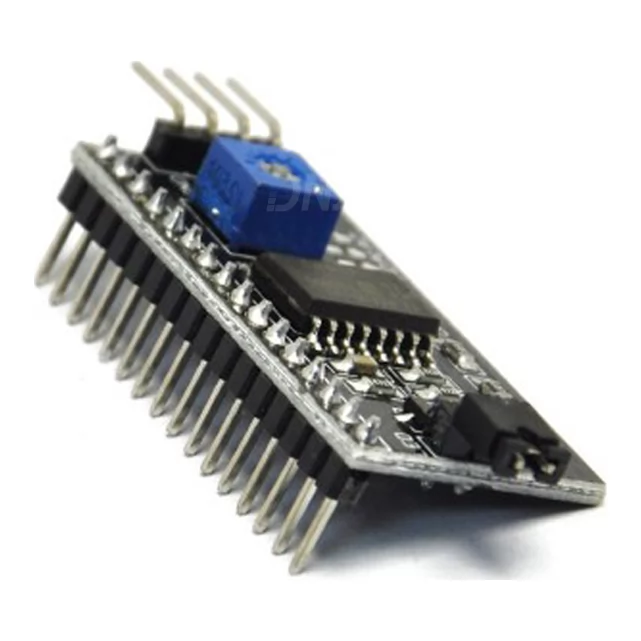

I2C Module for 16X2 LCD

This is a RoHS compliant I2C Serial LCD Daughter board that can be connected to a standard HD44780 compatible 16x2 Character Display Module that supports 4 bit mode.

All Character Modules sold on our site support 4 bit mode, and nearly all commercially available 16x2 line character modules support it too.

This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on internet for using this board with Arduino. Do a search for "Arduino LCD PCF8574". The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provided on the board. This allows up to 3 LCD displays to be controlled via a single I2C bus (giving each one it's own address).

We have Various sizes of HMI Modules. Check out our complete collection of HMI Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of I2C Module for 16X2 LCD

5V power supply
Serial I2C control of LCD display using PCF8574
Back-light can be enabled or disabled via a jumper on the board
Contrast control via a potentiometer
Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing
Size : 41.6mm x 19.2mm
