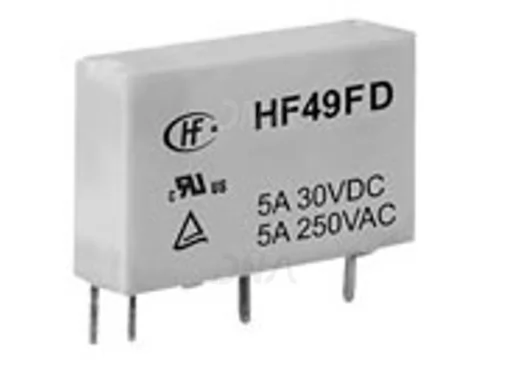

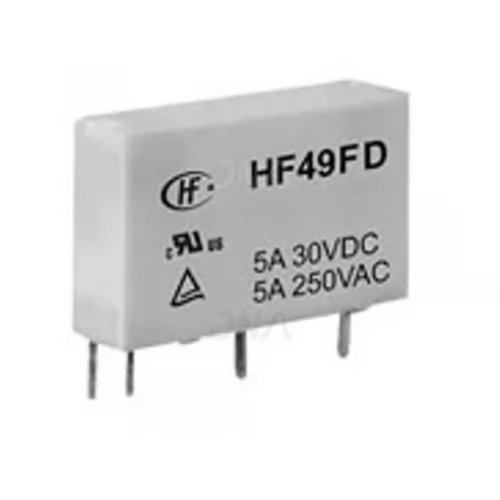

  • Hongfa HF49FD 1H12F Series 5A 24V SPST PCB Mount Miniature Power Relay

Product Images are shown for illustrative purposes only and may differ from actual product.

Hongfa HF49FD 1H12F Series 5A 24V SPST PCB Mount Miniature Power Relay


Write a review | 0 reviews

  • Stock: 20
  • SKU: 7784 | DAH529
  • Rs. 94.19 (inc GST)
    Rs.79.83 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Hongfa HF49FD 1H12F Series 5A 24V SPST PCB Mount Miniature Power Relay

Hongfa HF49FD 1H12F Series 5A 24V SPST PCB Mount Miniature Power Relay

Miniature power relay offers Slim size (width 5mm, height 12.5mm), 5A switching capability, 3kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets IEC61131-2 reinforce insulation.

DNA solutions, Nashik has various types of Relays. Check out our complete collection of Relays.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Hongfa HF49FD  1H12F Series 5A 24V SPST PCB Mount Miniature Power Relay

  • Type : HF49FD/024-1H12F
  • Coil nominal voltage : 24 V DC
  • Min. pick-up voltage : 16.8 V DC
  • Max. pick-up voltage : 28.8 V DC
  • Control mode : monostable, 1 coil
  • Resistance (coil) : 3200 Ω
  • Contact type : 1 maker
  • Contact material : AgNi

  • Compact Design: Small size makes it ideal for tight PCB layouts
  • Low Power Consumption: Energy-efficient 400mW coil operation
  • Durability: Long electrical and mechanical life
  • Versatility: Supports AC and DC loads up to 5A
  • PCB Mountable: Tailored for printed circuit board integration

Specifications of Hongfa HF49FD  1H12F Series 5A 24V SPST PCB Mount Miniature Power Relay

  • Model: HF49FD 1H12F
  • Contact Configuration: SPST (Single Pole Single Throw)
  • Rated Coil Voltage: 24V DC
  • Contact Rating: 5A at 250VAC/30VDC
  • Coil Power Consumption: Approx. 400mW
  • Operating Time: ≤10 ms
  • Release Time: ≤5 ms

Applications of Hongfa HF49FD  1H12F Series 5A 24V SPST PCB Mount Miniature Power Relay

  • Industrial Automation
  • Home Appliances
  • Security Systems
  • Lighting Control
  • Telecommunications

    Package Includes

          1 x Hongfa HF49FD  1H12F Series 5A 24V SPST PCB Mount Miniature Power Relay

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
