TB6600 4 Ampere Stepper Motor Driver for 16 Micro-Step CNC 1 Axis
- Stock: 9 InStock
- SKU: 2635 | DAE060
-
Rs.
387.23 (inc GST)
Rs.328.16 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |

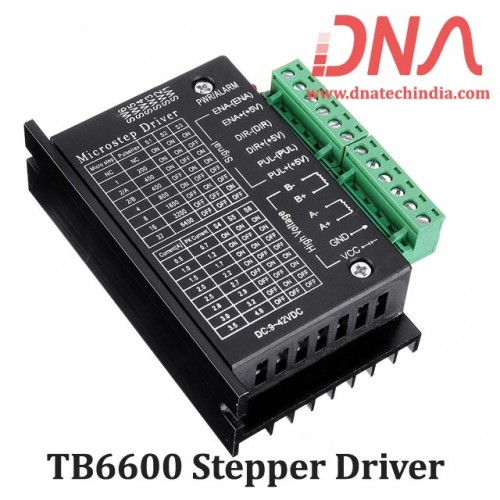

TB6600 4 Ampere 1 Axis Stepper Motor Driver
TB6600 0.2-4 Ampere 9~42V TTL 16 Micro-Step CNC 1 Axis Stepper Motor Driver
TB6600 Stepper Motor Driver is an easy-to-use professional stepper motor driver, which could control a two-phase hybrid stepper motor. It is compatible with Arduino and other microcontrollers that can output a 5 Volts digital pulse signal.
TB6600 Stepper Motor Driver has a wide range of power input, 9~42 Volts DC power supply. And it is able to output 4 Ampere peak current, which is enough for the most of stepper motors. The stepper driver supports speed and direction control.
You can set its micro step and output current with 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability. As a professional device, it is able to drive 57, 42-type two-phase, four-phase, hybrid stepper motor.
You can set its micro step and output current with 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability. As a professional device, it is able to drive 57, 42-type two-phase, four-phase, hybrid stepper motor.
DNA Solutions has large collection of various types of Stepper Motor and Motor drivers. Check our complete collection of Motor Driver Modules.
If you are in Nasik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of TB6600 Stepper Motor Driver Module
- H bridge bipolar constant current drive.
- The biggest 5.0 A Eight kinds of output current are optional.
- The biggest 32 To subdivide 6 kinds of subdivision modes selectable.
- Input signal high-speed photoelectric isolation.
- A total of standard single pulse interface.
- Offline retention function.
- The semi-enclosed casing can adapt to a more stringent environment.
- Provide energy saving half-automatic current lock function.
Specification of TB6600 Stepper Motor Driver
- Supply Voltage (V) : 9 to 48 volts
- Input Supply Current (A) : 1 to 5 Ampere
- output Current(A) : 0.2 to 4 Ampere
- Max Power Output : 160 Watt
- Operating Temperature (°C) : -10 to 45
- Length (mm) : 105
- Width (mm) : 75
- Height (mm) : 35
- Weight (gm) : 220
Package Includes :
- 1 x TB6600 Motor Driver With Case
