Product Images are shown for illustrative purposes only and may differ from actual product.

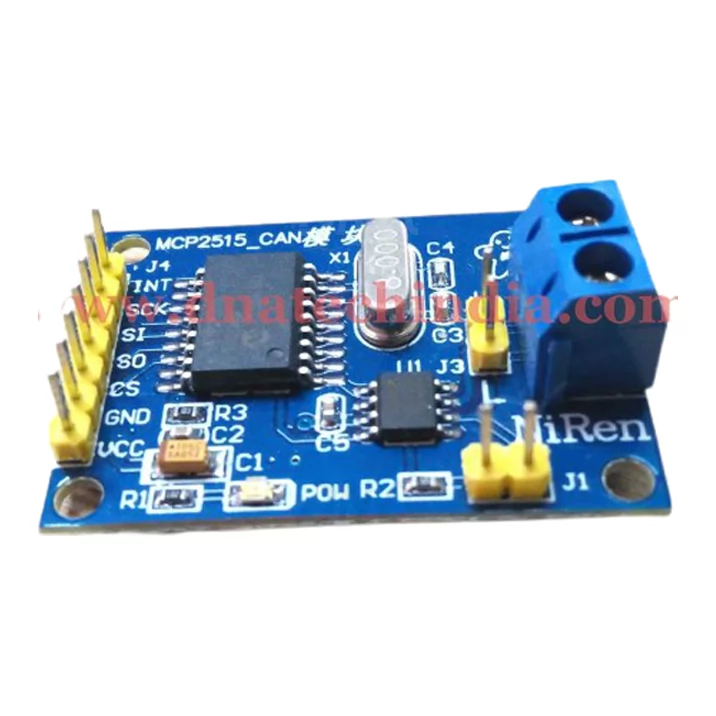

MCP2515 CAN BUS Module Board
- Stock: 21 InStock
- SKU: 0490 | DAA714
-
Rs.
173.46 (inc GST)
Rs.147.00 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
MCP2515 CAN BUS Module Board
This is a easy to use CAN bus module controlled via SPI Interface.
It contains CAN Controller MCP2515 and TJA1050 which is a high speed CAN trans-receiver. This module can be esaily interfaced to any microcontroller via SPI Interface. It can also be interfaced to Arduino and Raspberry PI.
We have Various sizes of Modules. Check out our complete collection of Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Specification for MCP2515 CAN BUS Module Board
- Support CAN 2.0B protocol
- Use High-speed CAN transceiver TJA1050
- Dimension : 40×28mm
- SPI control for expand Multi CAN bus interface
- 8MHZ crystal oscillator
- 120Ω terminal resistance
Pinout for MCP2515 CAN BUS Module Board
- VCC : 5V power input pin
- GND : power ground pin
- CS : SPI SLAVE select pin (Active low)
- SO : SPI master input slave output lead
- SI : SPI master output slave input lead
- SCLK: SPI clock pin
- INT: MCP2515 interrupt pin
