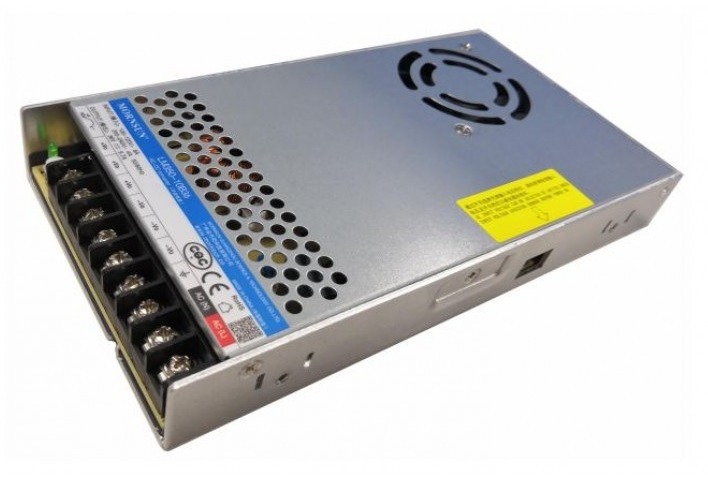

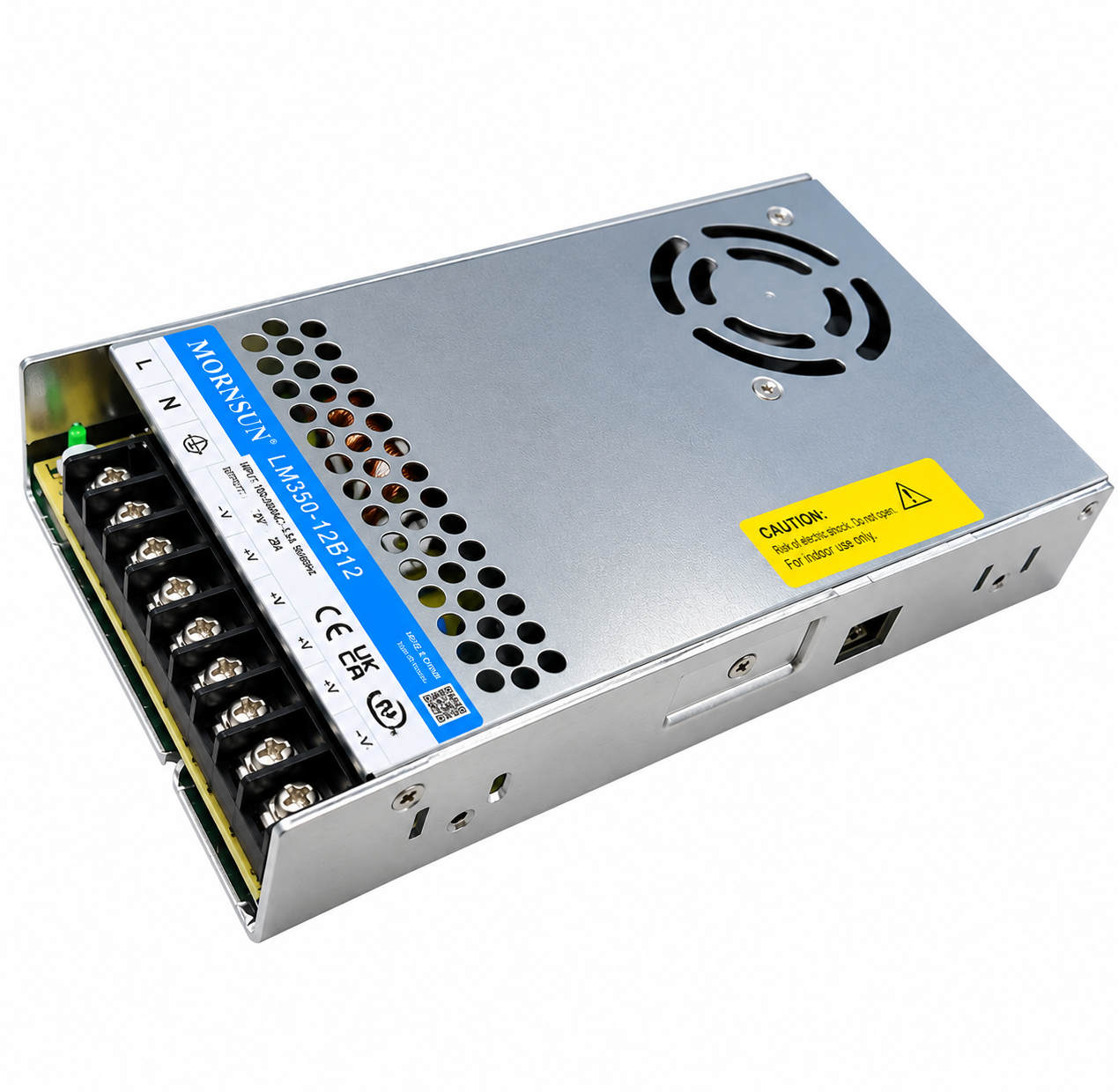

Mornson LM350-12B12 350W Enclosed AC-DC SMPS

Mornson LM350-12B12 350W Enclosed AC-DC SMPS

The Mornsun LM350-12B12 is a 350W, 12V DC SMPS designed for industrial automation, control systems, LED displays, and other applications requiring a stable DC output. It converts an AC input voltage range of 85V to 264V into a consistent 12V DC output. Built with protection features like short-circuit, overvoltage, and overcurrent protection, the LM350-12B12 ensures reliable operation and long-term durability, even in harsh industrial conditions. LM350-10B12 or LM350-12B12 is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability.

DNA solutions, Nashik has various types of Mornsun 's. Check out our complete collection of  Mornsun's.

• Selectable AC input range: 90 ~ 132VAC/180 ~ 264VAC


• DC input range: 240 ~ 373VDC(Switch in position of 230)


• Ultra low standby power consumption: < 0.75W @230VAC


• Operating ambient temperature range: – 30℃ ~ +70℃


• Compact size with 1U low profile


• LED indicator for power on


• Output short circuit, over-current, over-voltage, over-temperature protection


Specifications of Mornson LM350-12B12 350W Enclosed AC-DC SMPS

• Series: LM350-12B


• Part Number: LM350-12B12


• Output Voltage: 12V


• Output Current: 29A


• Output Power: 348 Watt


• Type: Enclosed Type Single Output


Package Includes

• 1 x Mornson LM350-12B12 350W Enclosed AC-DC SMPS
