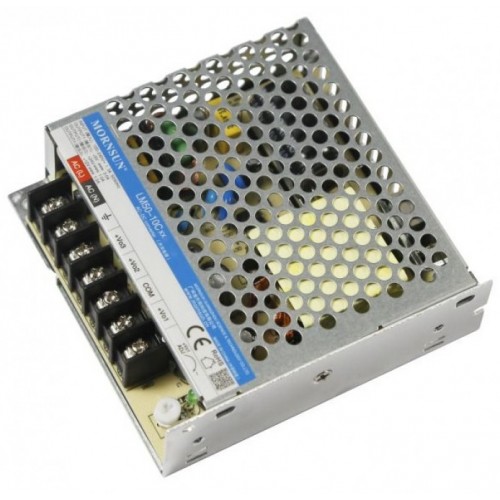

MORNSUN LM50-10C05412-10 51W SMPS AC/DC Enclosed Triple Output Switching Power Supply

MORNSUN LM50-10C05412-10 51W SMPS AC/DC Enclosed Triple Output Switching Power Supply

LM50-10C05412-10 SMPS is one of power converter design features 3 output versions, which can independently supply 3 different loads in the system. The products can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the need of a fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. The products also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio providing the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.

DNA solutions, Nashik has various types of Mornsun's. Check out our complete collection of  Mornsun's.

• Universal 85 - 264VAC or 120 - 373VDC Input voltage


• Operating ambient temperature range: -30℃ to +70℃


• High efficiency, high reliability and long lifetime


• LED indicator for power on


• Output short circuit, over-current, over-voltage protection


• Withstand 300VAC surge input for 5s


• High I/O isolation test voltage up to 3000VAC


Specifications of MORNSUN LM50-10C05412-10 51W SMPS AC/DC Enclosed Triple Output Switching Power Supply

• Type- Enclosed Type Triple Output


• Output Power- 51W


• Series- LM50-10C


• Part Number- LM50-10C05412-10


Package Includes

• 1 x MORNSUN LM50-10C05412-10 51W SMPS AC/DC Enclosed Triple Output Switching Power Supply
