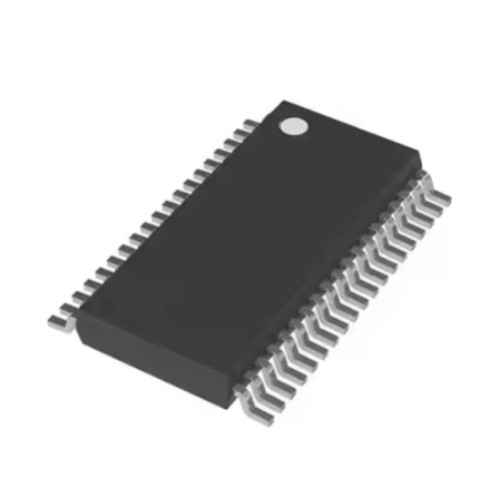

MSP430F2272 16-bit Ultra-Low-Power Microcontroller IC

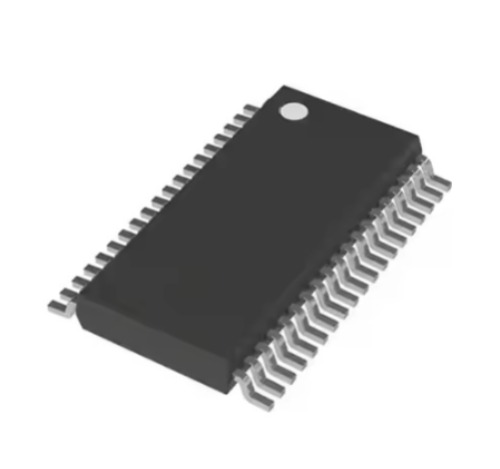

MSP430F2272 IC 16-bit Ultra-Low-Power Microcontroller

The Texas Instruments MSP430F2272 16-bit family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a  powerful  16-bit  RISC  CPU,  16-bit  registers,  and  constant  generators  that  contribute  to  maximum  code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs.The  MSP430x11x1(A)  series  is  an  ultralow-power  mixed  signal  microcontroller  with  a  built-in  16-bit  timer, versatile analog comparator and fourteen I/O pins.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Low Supply Voltage Range 1.8 V to 3.6 VD


• Ultralow Power Consumption−  Active Mode: 160 μA at 1 MHz, 2.2 V


• Wake-Up From Standby Mode in Less Than 6 μs


• 16-Bit RISC Architecture, 125 ns Instruction Cycle Time


• Basic Clock Module Configurations:−  Various Internal Resistors


• 16-Bit Timer A With Three Capture/Compare Registers


• On-Chip Comparator for Analog Signal Compare Function or Slope Analog-to-Digital (A/D) Conversion


Specifications of MSP430F2272 16-bit Ultra-Low-Power Microcontroller IC

• Core: 16-bit RISC CPU, MSP430 core


• Memory: Flash Memory: 32 KB for code storage (in-system programmable)


• Low Power Consumption: Active mode: 270 µA at 1 MHz, 2.2V


• Clock System: Internal digitally controlled oscillator (DCO) for fast wake-up from low-power modes


• Analog Features: 10-Bit ADC: 10-channel, 200 ksps (kilo-samples per second) Analog-to-Digital Converter (ADC) with integrated reference voltage and sample-and-hold


• Ultra-Low Power Modes: LPM0: Low-power mode 0, CPU off, all clocks active


• 1 x MSP430F2272 16-bit Ultra-Low-Power Microcontroller IC
