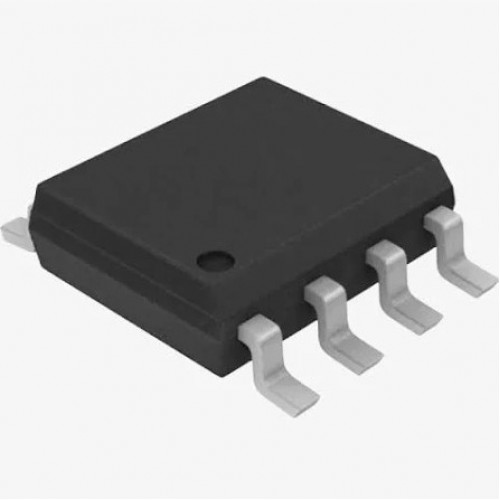

NE555 PRECISION TIMER SMD IC

NE555 PRECISION TIMER SMD IC

The NE555 is a highly stable precision timer IC used in various timing, pulse generation, and oscillator applications. It operates in astable and monostable modes, allowing it to function as a timer, pulse-width modulator, and frequency generator. Designed for reliable operation, the NE555 provides accurate time delays and duty cycles, making it ideal for electronic circuits requiring precision timing control.

DNA solutions, Nashik has various types of Timer IC's. Check out our complete collection of Timer IC's.

• Wide supply voltage range: 4.5V to 15V

• High-temperature stability

• Adjustable duty cycle

• Low power consumption

• Capable of generating time delays from microseconds to hours

• Provides both astable (oscillator) and monostable (one-shot) operation

• High output current capability: up to 200mA

Specifications of NE555 PRECISION TIMER SMD IC

• Supply Voltage (VCC): 4.5V to 15V

• Operating Current: 3mA to 10mA (depending on voltage)

• Output Voltage: 0V to VCC

• Output Current: 200mA (max)

• Frequency Range: Up to 500 kHz

• Timing Accuracy: ±1%

• Operating Temperature: -55°C to +125°C

Applications of NE555 PRECISION TIMER SMD IC

• Pulse generation circuits

• Oscillator circuits

• Timer applications (delay timers, watchdog timers)

• Pulse width modulation (PWM) circuits

• Frequency division circuits

• LED and lamp flashers

Package Includes

      1 x NE555 PRECISION TIMER SMD IC
