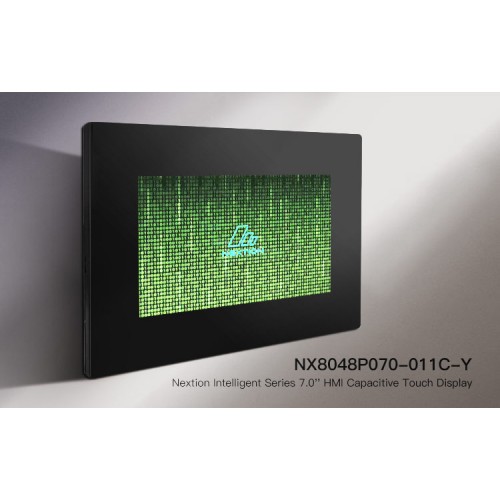

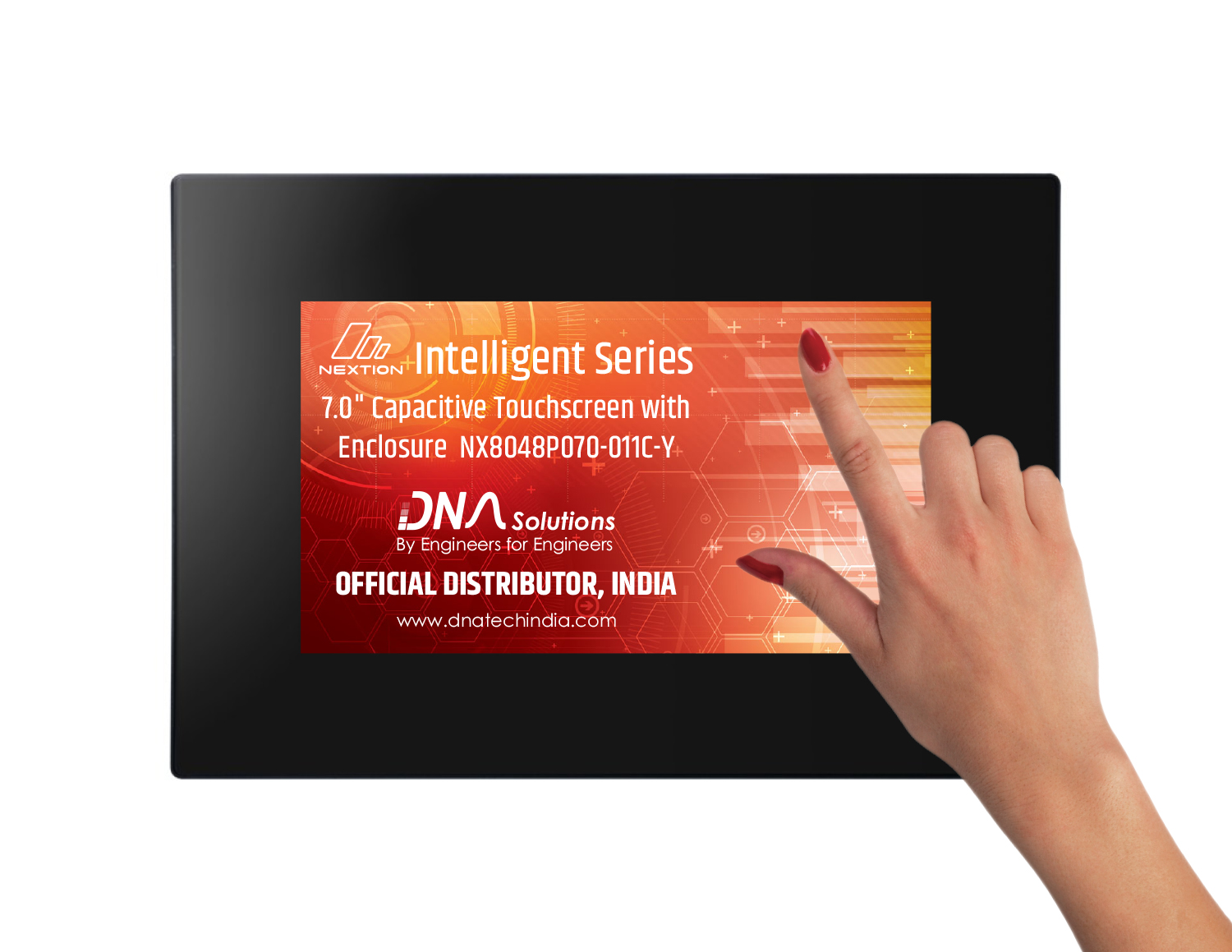

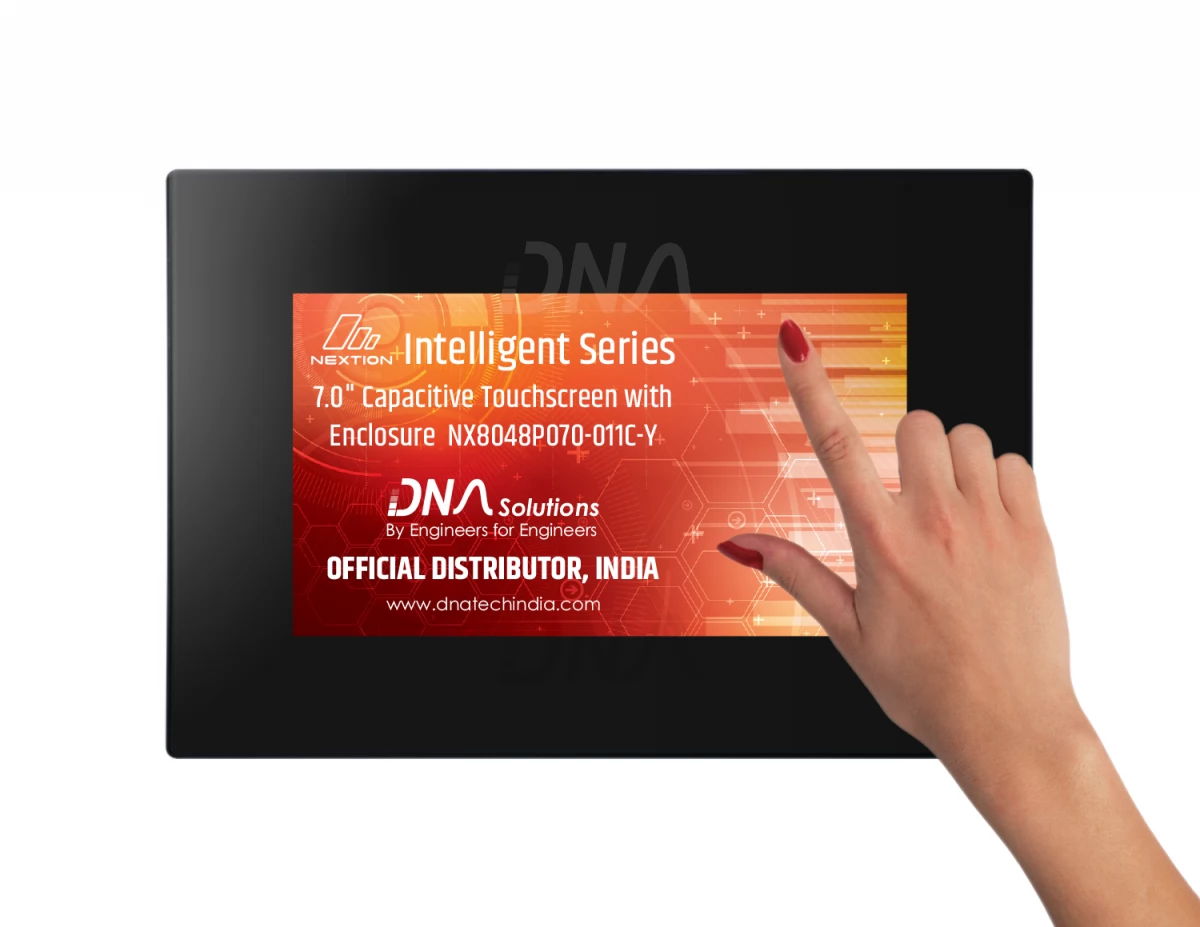

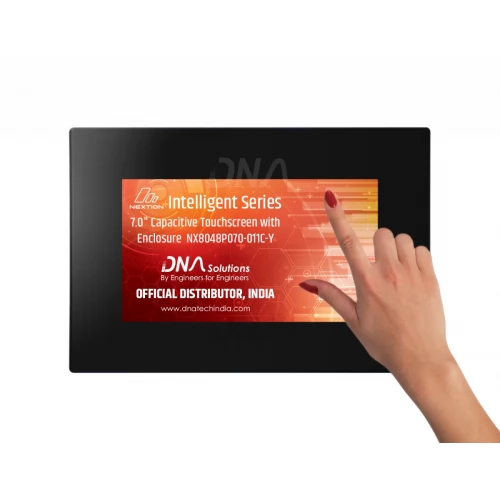

7" Nextion Intelligent Series HMI Capacitive Touch and with enclosure

NX8048P070-011C-Y Nextion Intelligent series 7 inch Capacitive Touchscreen Display with Enclosure

This is a 7" Nextion Display for Capacitive touchscreen HMI and has a enclosure for easy Mounting. This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to your Microcontroller using simple UART port.

Nextion is a Human Machine Interface (HMI) solution combining an on board processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series.

What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag. etc.

You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

Hardware Features For NX8048P070-011C-Y

• NX8048P070-011C-Y(7.0'' IPS RGB 65K capacitive touchscreen)
• Onboard MCU 200MHz and up to 128MB for HMI project
• Built-in RTC，EEPROM, 8 digital GPIOs (2 PWM capable)
• 4 pins (+5V, TX, RX, GND) TTL serial interface
• 300 nit Brightness with 1% interval adjustment
• Audio interface
• CE and RoHS Compliant
• Model: NX8048P070-011C-Y(HMI Capacitive Touch Display)

Software Features For NX8048P070-011C-Y

• Support audio resource.

• Support video resource.
• Support PNG picture resource.
• Componant Transparncy attribute.
• Support Animation  resource.
• Componant  and page loading effect.

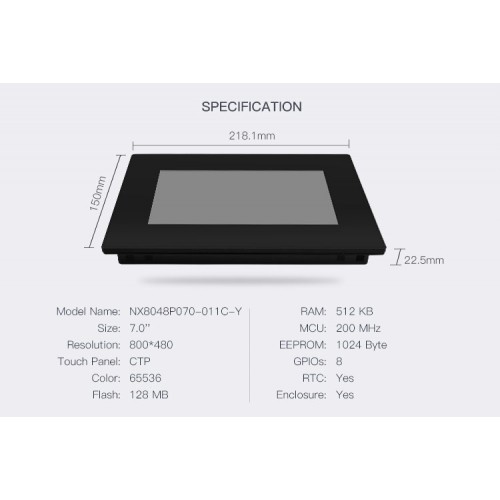

Additional Information For NX8048P070-011C-Y

• Display Resolution : 800 x 480
• Display Interface : Serial
• Screen Type : Touch Screen
• Display Controller : No
• TFT display interface : N/A
• Display Size: 7.0”
• Board Size : 218.1mmx150mmx22.5mm
• Expand :  SD Card Socket/Touch Screen
• Weight : 700 g

In The Box

• NX8048P070-011C-Y HMI Display*1

• XH2.54 4P Wire*1

• Power Supply Test Board*1

• Mounting buckle & crew*4

NX8048P070-011C-Y Certification and Documents

• Datasheet
• Dimension
• Instruction Set
• Editor Guide
• LTA Announcement
• CE Certification
• ROHS Certification
