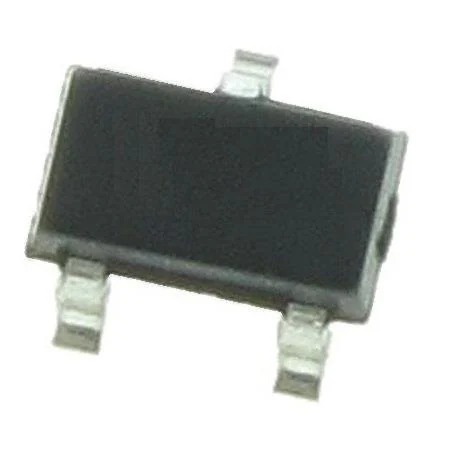

NUP2105L TVS  Protection Diode Dual Line CAN Bus Protector SOT23 Diode

NUP2105L TVS  Protection Diode Dual Line CAN Bus Protector SOT23 Diode

The NUP2105L TVS  Protection Diode Dual Line CAN Bus Protector has been designed to protect the CAN transceiver in high−speed and fault tolerant networks from ESD and other harmful transient voltage events. This device provides bidirectional protection for each data line with a single compact SOT−23 package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements.

DNA solutions, Nashik has various types of Diode's. Check out our complete collection of Diode's.

• Low Reverse Leakage Current (< 100 nA)


• Low Capacitance High−Speed CAN Data Rates


• 350 W Peak Power Dissipation per Line (8/20 sec Waveform)


• IEC Compatibility


• ISO 7637−2 Pulse 2a: Repetitive Load Switch Disconnect, 9.5 A


• ISO 7637−3 Pulse 3a,b: Repetitive Load Switching Fast Transients,50 A


• Flammability Rating UL 94 V−0


• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and


• PPAP Capable


• These Devices are PB−Free, Halogen Free/BFR Free and are RoHS Compliant


Applications of NUP2105L TVS  Protection Diode Dual Line CAN Bus Protector SOT23 Diode

• Industrial Control Networks

• Smart Distribution Systems (SDS®)

• Device Net™

• Automotive Networks

• Low and High−Speed CAN

• Fault Tolerant CAN

Package Includes

• 1 x NUP2105L TVS  Protection Diode Dual Line CAN Bus Protector SOT23 Diode
