• N79E352RADG Nuvoton Microcontroller

Product Images are shown for illustrative purposes only and may differ from actual product.

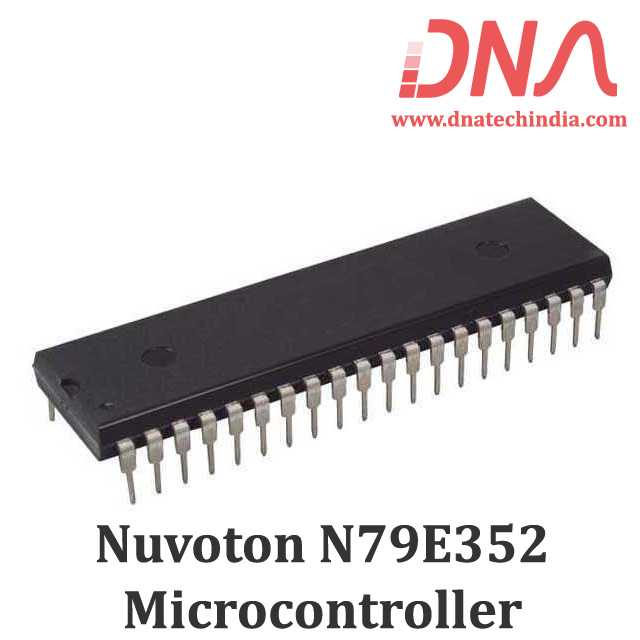

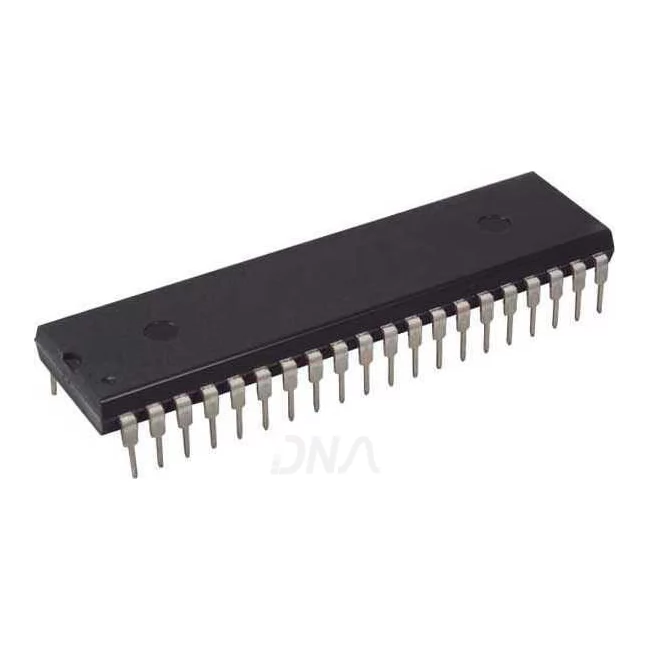

N79E352RADG Nuvoton Microcontroller

  • Stock: Out Of Stock
  • Brand: Nuvoton
  • SKU: 3104 | DAE886
  • Rs. 88.50 (inc GST)
    Rs.75.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    5 + 81.42 20 + 74.93 50 + 68.91

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

N79E352RADG Nuvoton Microcontroller IC

Nuvoton N79E352R Microcontroller is a high speed 4T 8051 MCU operating at 2.4V to 5.5V with 22.1184 MHz internal oscillator in DIP40 Package

The N79E352 is an 8-bit Turbo 51 microcontroller which has Flash EPROM programmable hardware writer. The instruction set of the N79E352R is fully compatible with the standard 8052.

The Nuvoton N79E352 Microcontroller contains a 8Kbytes of main Flash EPROM; a 256 bytes of RAM; 128 bytes NVM Data Flash EPROM; three 16-bit timer/counters; 2-channel 8-bit PWM; 1-channel UART and 1 additional input capture. These peripherals are supported by 11 interrupt sources four-level interrupt capability. To facilitate programming and verification, the Flash EPROM inside the N79E352RADG allows the program memory to be programmed and read electronically. Once the code is confirmed, the user can protect the code for security.

N79E352RADG Microcontroller is designed for cost effective applications which can serve industrial devices, and other low power applications. .

DNA Solution has various types of Nuvoton Microcontroller in stock. Check our complete collection of Nuvoton Microcontrollers

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

FEATURES of N79E352RADG Nuvoton Microcontroller


  • Fully static design 8-bit Turbo 51 CMOS microcontroller up to 24MHz when VDD=4.5V to 5.5V,
  • 12MHz when VDD=2.7V to 5.5V, and 4MHz when VDD=2.4V to 5.5V.
  • 8K bytes of AP Flash EPROM, with external writer programmable mode.
  • 256 bytes of on-chip RAM.
  • 128 bytes NVM Data Flash EPROM for customer data storage used and 10k writer cycles.
  • Instruction-set compatible with MCS-51.
  • On-chip configurable RC oscillator: 22.1184MHz/11.0592MHz (selectable by config bit) with ±2% accuracy, at 5V voltage and 25°C condition. (±2% accuracy is only for N79E352R.)
  • Three 16-bit timer/counters.
  • One input capture.
  • 11 interrupt source with four levels of priority.
  • One enhanced full duplex serial port with framing error detection and automatic address recognition.
  • 4 outputs mode and TTL/Schmitt trigger selectable Port.
  • Programmable Watchdog Timer with 20KHz internal RC clock can wake-up the power down mode, and have very low power under 10uA at 5V.
  • Two-channel 8-bit PWM.
  • One I2C communication port.
  • Dual 16-bit Data Pointers.
  • Software programmable access cycle to external RAM/peripherals.
  • Eight keypads interrupt inputs with sharing the same interrupt source.
  • LED drive capability (20mA) on all port pins, total 100mA.
  • Low Voltage (3 levels) Detection interrupt and reset.
  • Industrial temperature grade -40oC~85oC.
  • Package: DIP40

Related Links

Package Includes

1 x N79E352R Nuvoton Microcontroller

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
