OBD2 16 Pin Male Female Connector Socket

OBD2 16 Pin Male Female Connector Socket

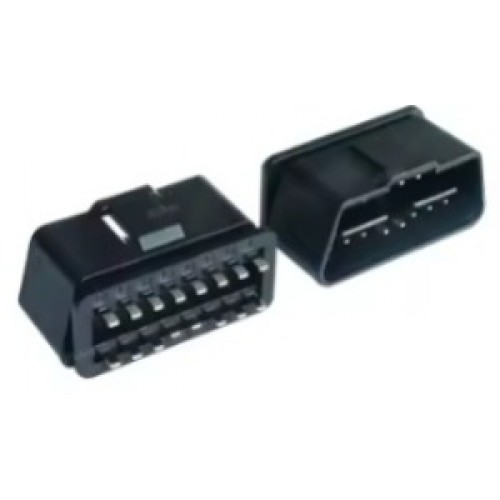

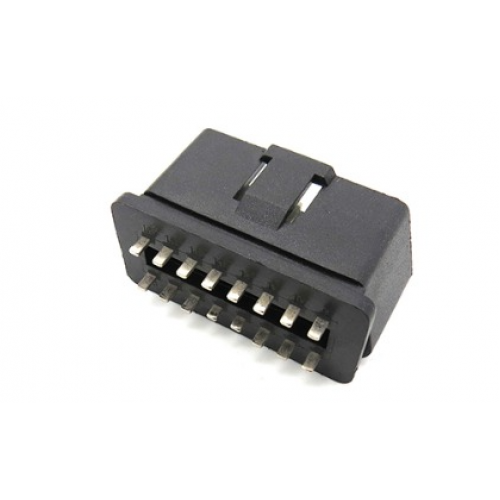

The OBD2 (On-Board Diagnostics II) Connector Socket is a standardized 16-pin interface used in vehicles for diagnostics and communication with the vehicle's electronic systems. This socket is typically found under the dashboard and is used to connect diagnostic tools or devices for reading and clearing error codes, monitoring vehicle performance, or even tuning engine parameters.

DNA solutions, Nashik has various types of Socket's. Check out our complete collection of  Socket's.

• Universal Compatibility: Compatible with all vehicles that adhere to the OBD-II standard (usually vehicles manufactured after 1996).


• 16-Pin Interface: Provides access to various vehicle systems through 16 pins, supporting multiple communication protocols, including CAN, ISO9141, J1850, and others.


• Durable Construction: Made of sturdy plastic and reliable metal pins, ensuring long-lasting performance, even with frequent use in garages and workshops.


• Versatile Use: Enables connection to scan tools, diagnostic equipment, performance monitors, and other devices used by mechanics and technicians to troubleshoot issues.


• Pin Assignment: Pinout includes power supply, ground, CAN High, CAN Low, and other communication signals needed for data transfer between the vehicle and external tools.


• Easy Installation: The socket is typically panel-mounted and is easy to access for plugging and unplugging diagnostic devices.


Specifications of OBD2 16 Pin Male Female Connector Socket

• Pin Count: 16 pins arranged in two rows.


• Compliance: SAE J1962 standard for OBD-II systems.


•  Voltage Range: Typically operates on a 12V system (may vary with vehicle).


• Operating Temperature: -40°C to +85°C (depends on the material).


Package Includes

• 1 x OBD2 16 Pin Male Female Connector Socket
