OBD2 Connector with board and cover

OBD2 Connector with board and cover

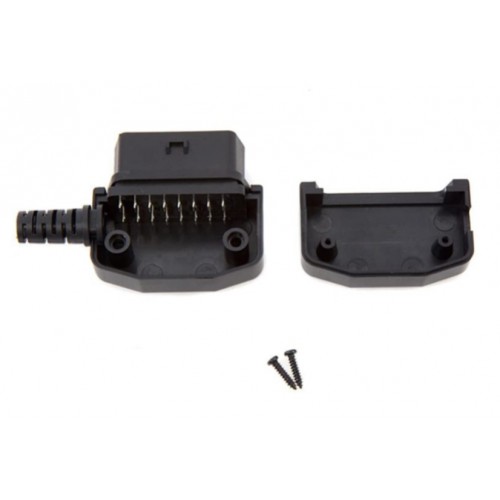

The OBD2 (On-Board Diagnostics 2) connector with board and cover is a diagnostic tool that allows vehicles to communicate with external devices such as diagnostic scanners, computers, and smartphones. A 16-pin diagnostic connector that complies with the OBD-II standard, allowing access to vehicle data through various communication protocols. A PCB (printed circuit board) that provides support for the electrical components and ensures reliable communication between the vehicle and the diagnostic tool .A durable plastic or metal casing that protects the connector and board from environmental damage such as dust, moisture, or physical impact.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of  Connector's.

• Standard 16-pin OBD2 Interface: Compatible with most cars manufactured after 1996, enabling data transmission for vehicle diagnostics.


• Multiple Communication Protocols: Supports various communication standards, such as ISO9141, ISO14230, CAN (Controller Area Network), J1850 PWM, and J1850 VPW, ensuring compatibility with a wide range of vehicles.


• PCB Integration: The circuit board facilitates communication between the vehicle and external devices, providing easy access for monitoring, diagnostics, and data analysis.


• Protective Casing: The cover ensures protection against external factors such as dust and physical damage, extending the lifespan of the connector.


Specifications of OBD2 Connector with board and cover

• Connector Type: 16-pin OBD2 male connector


• Board Type: Integrated PCB with communication protocol support


• Supply Voltage: Typically powered by the vehicle’s 12V system (via the OBD port)


• Current Consumption: Low-power design, usually under 100 mA


• Operating Temperature: -40°C to +85°C (industrial grade, suitable for automotive environments)


Package Includes

• 1 x OBD2 Connector with board and cover
