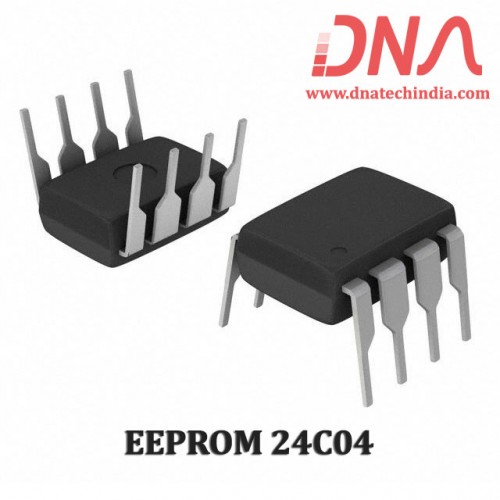

EEPROM 24C04

24C04 4K 5 volts I2C EEPROM

The 24x04 are 4 Kbit electrically erasable programmable memories (EEPROM), organized as 2 blocks of 256 x8 bits. They are manufactured in STMicroelectronics’s Hi-Endurance Advanced CMOS technology which guarantees an endurance of one million erase/write cycles with a data retention of 40 years. Both Plastic Dual-in-Line and Plastic Small Outline packages are available. The memories are compatible with the I2C standard, two wire serial interface which uses a bi-directional data bus and serial clock.

24C04 EEPROM carry a built-in 4 bit, unique device identification code (1010) corresponding to the I2C bus definition. This is used together with 2 chip enable inputs (E2, E1) so that up to 4 x 4K devices may be attached to the I2C bus and selected individually. 24C04 I2C EEPROM memories behave as a slave device in the I2C protocol with all memory operations synchronized by the serial clock. Read and write operations are initiated by a START condition generated by the bus master. The START condition is followed by a stream of 7 bits (identification code 1010), plus one read/write bit and terminated by an acknowledge bit.

We have various types EEPROMS and other Memory IC. Check our complete collection of EEPROM IC's.

Features of 24C04 I2C EEPROM

• 1 MILLION ERASE/WRITE CYCLES with

• 40 YEARS DATA RETENTION

• SINGLE SUPPLY VOLTAGE :

           – 3V to 5.5V for ST24x04 versions

           – 2.5V to 5.5V for ST25x04 versions

• HARDWARE WRITE CONTROL VERSIONS: ST24W04 and ST25W04

• PROGRAMMABLE WRITE PROTECTION

• TWO WIRE SERIAL INTERFACE, FULLY I2C BUS COMPATIBLE

• BYTE and MULTIBYTE WRITE (up to 4 BYTES)

• PAGE WRITE (up to 8 BYTES)

• BYTE, RANDOM and SEQUENTIAL READ MODES

• SELF TIMED PROGRAMMING CYCLE

• AUTOMATIC ADDRESS INCREMENTING

• ENHANCED ESD/LATCH UP PERFORMANCES
