PAM8610 Audio Amplifier Module

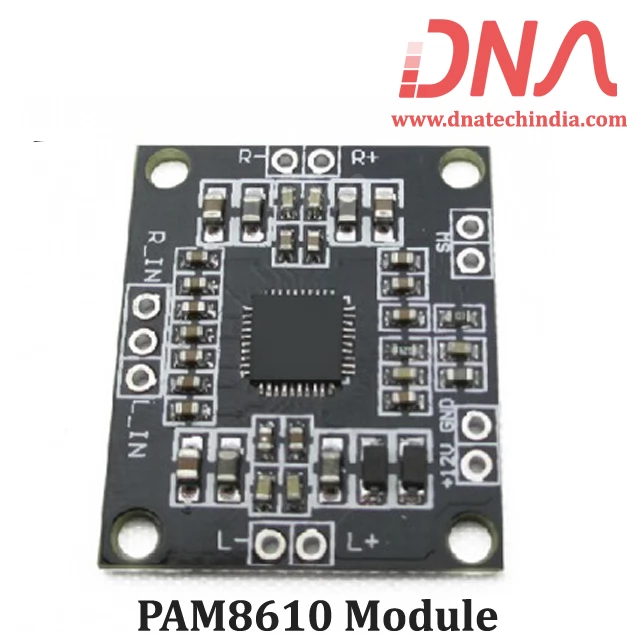

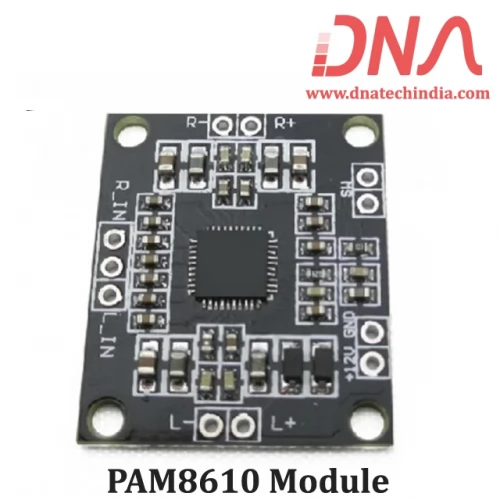

PAM 8610 Digital Stereo Class-D Amplifier Board

The PAM8610 is a 15 Watt (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiency than competitors’ ICs.

The PAM8610 15 watt Audio amplifier only requires very few external components, significantly saving cost and board space. This 2 x 15 Watt Two-Channel Stereo Class-D Amplifier is available in a 40 pin QFN 6 x 6 mm package

We have various types of Load Cells, Force Sensor, Flex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

How to use PAM8610 Audio Amplifier

• The power supply voltage limit is 16.5 Volts, do not use more than this voltage.

• The power supply is recommended for 12 volts, 3 Ampere power supply filter better.

• 4-8 inch stereo speakers recommended.

• Do not short-circuit the audio output to each other or shorted to ground.

• Carefully check before electricity, ensure the wiring is correct before electricity.

Features of PAM8610 Audio Amplifier

• This plate with a switching function, SW short, will turn off the power amplifier.

• Working Mode : Class D (PWM modulation type).

Specification of PAM8610 Audio Module

• Model : PAM 8610

• Input Voltage (V) : 7 ~ 15

• Working Mode : Class D (PWM modulation type)

• Power (W) : 15

• Length (mm) : 30.5

• Width (mm) : 25.5

• Height (mm) : 2.6

• Weight (gm) : 5

Package Includes :

• 1x PAM8610 Audio Amplifier Module
