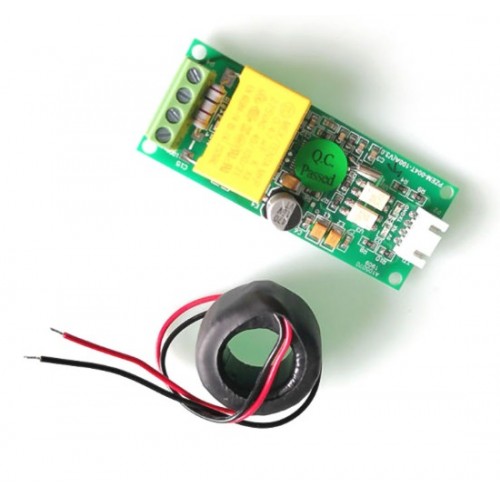

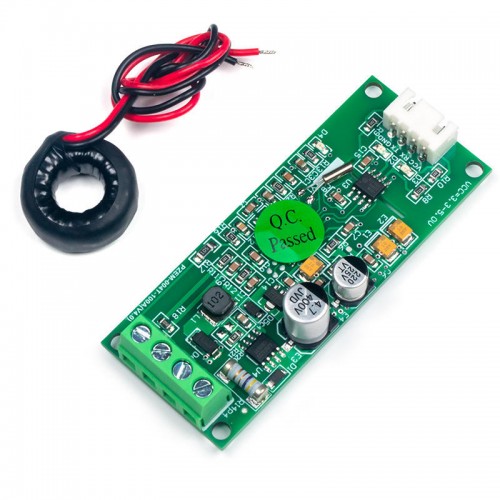

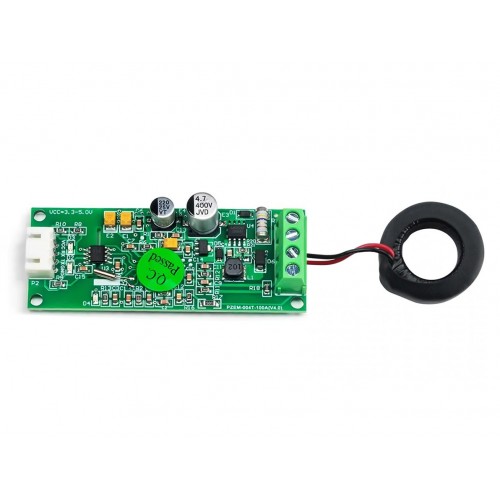

Peacefair PZEM-004T AC Multi-function Electric Energy Metering Power Monitor

Peacefair PZEM-004T AC Multi-function Electric Energy Metering Power Monitor

This Peacefair PZEM-004T Multi-function AC Power Monitor is very popular in electrical consumption measurement projects. It is capable of measuring four interrelated electrical variables as voltage, current, power, and energy.  This tiny PZEM-004T circuit is great for measuring AC (RMS) voltage, current, and power (single-phase). The unit easily interfaces with Arduino and other hardware using the code library.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Modules.

• Electrical parameter measurement function (voltage, current, active power, power)

• The power button clear function

• Power-down data storage function (cumulative power down before saving)

• PC PC display function (display voltage, current, active power, power)

• The serial communication function (comes with TTL serial interface, through various terminals to communicate with the adapter plate, read, and set the parameters)

Specifications of Peacefair PZEM-004T AC Multi-function Electric Energy Metering Power Monitor

• Accuracy: 1

• Operating Voltage (VDC): 80-260V (AC)

• Test voltage: 80-260V (AC)

• Max. Operating Current (mA): 100A

• Power Rating (W): 100A/22KW

• Frequency (Hz): 45-65Hz

Applications of Peacefair PZEM-004T AC Multi-function Electric Energy Metering Power Monitor

• Residential Power Monitoring

• Industrial and Commercial Monitoring

• Renewable Energy Systems

• Power Quality Monitoring

• Battery-Powered or Off-Grid Systems

Package Includes

      1 x Peacefair PZEM-004T AC Multi-function Electric Energy Metering Power Monitor
