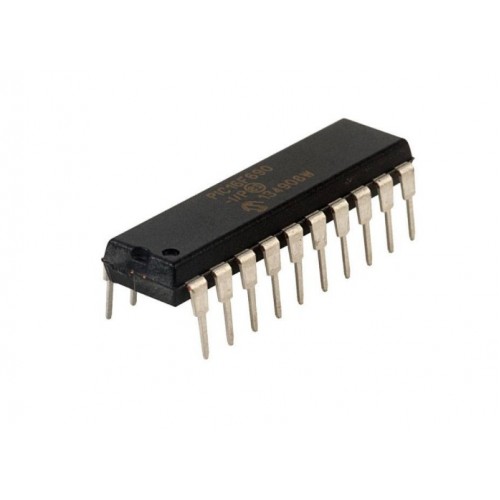

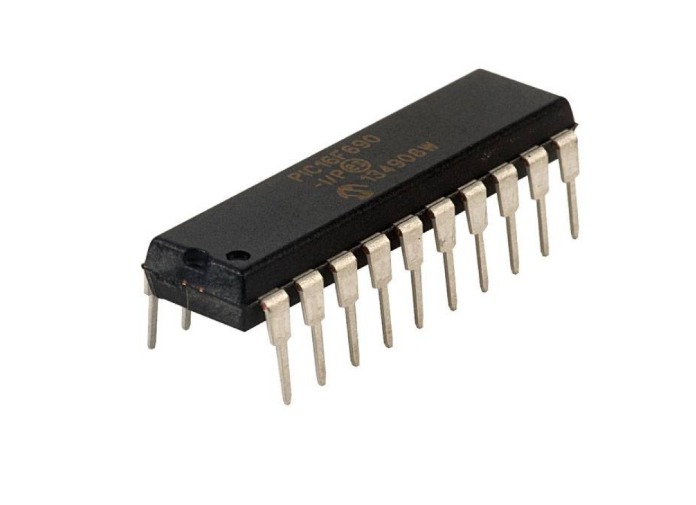

PIC16F690 20 Pin Flash Based 8 Bit CMOS Microcontroller DIP IC

PIC16F690 20 Pin Flash Based 8 Bit CMOS Microcontroller DIP IC

The PIC16F690 is a 20-pin microcontroller from the PIC16F series, based on the enhanced mid-range PIC® core architecture. It features Flash program memory, SRAM data memory, and EEPROM for non-volatile data storage. It is designed for general-purpose use and offers a balance of performance, peripherals, and cost-efficiency.

DNA solutions, Nashik has various types of Microcontroller IC's. Check out our complete collection of Microcontroller IC's.

• Communication Interfaces: Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)

• Analog Features: 12-channel 10-bit Analog-to-Digital Converter (ADC)

• Package: 20-pin DIP (Dual Inline Package) & Also available in SOIC and QFN packages

• Power-Saving Modes: Sleep mode and multiple oscillator options

• Watchdog Timer (WDT) with dedicated on-chip RC oscillator

• Programmable internal oscillator with multiple frequency selections

Specifications of PIC16F690 20 Pin Flash Based 8 Bit CMOS Microcontroller DIP IC

• CPU Architecture: 8-bit RISC

• Program Memory: 7 KB (4K x 14 words)

• Data Memory (SRAM): 256 bytes

• EEPROM Memory: 256 bytes

• I/O Pins: 18

• ADC Resolution: 10-bit

• Timers: 2 x 8-bit, 1 x 16-bit

• Communication Interfaces: EUSART, SPI, I2C

• Operating Voltage: 2.0V to 5.5V

Applications of PIC16F690 20 Pin Flash Based 8 Bit CMOS Microcontroller DIP IC

• Consumer Electronics

• Industrial Automation

• Automotive Systems

• Medical Devices

• Communication Systems

Package Includes

      1 x PIC16F690 20 Pin Flash Based 8 Bit CMOS Microcontroller DIP IC
